Gallery
This page shows a range of products that have been manufactured by our team to demonstrate our capabilities. If V & MS can assist you with any of your ventilation ducting requirements then please do not hesitate to make contact with our Estimating Team by sending an email to enquiries@v-ms.co.uk or click on Call Now along the bottom of your screen or call us on 01241 871 971.
-
![Plasma cutting out sections of circular flange for welding together]( "Plasma cutting flanges")
Plasma cutting out sections of circular flange for welding together
-
![Potato Storage Ventilation]( "cup-001-oct-2021")

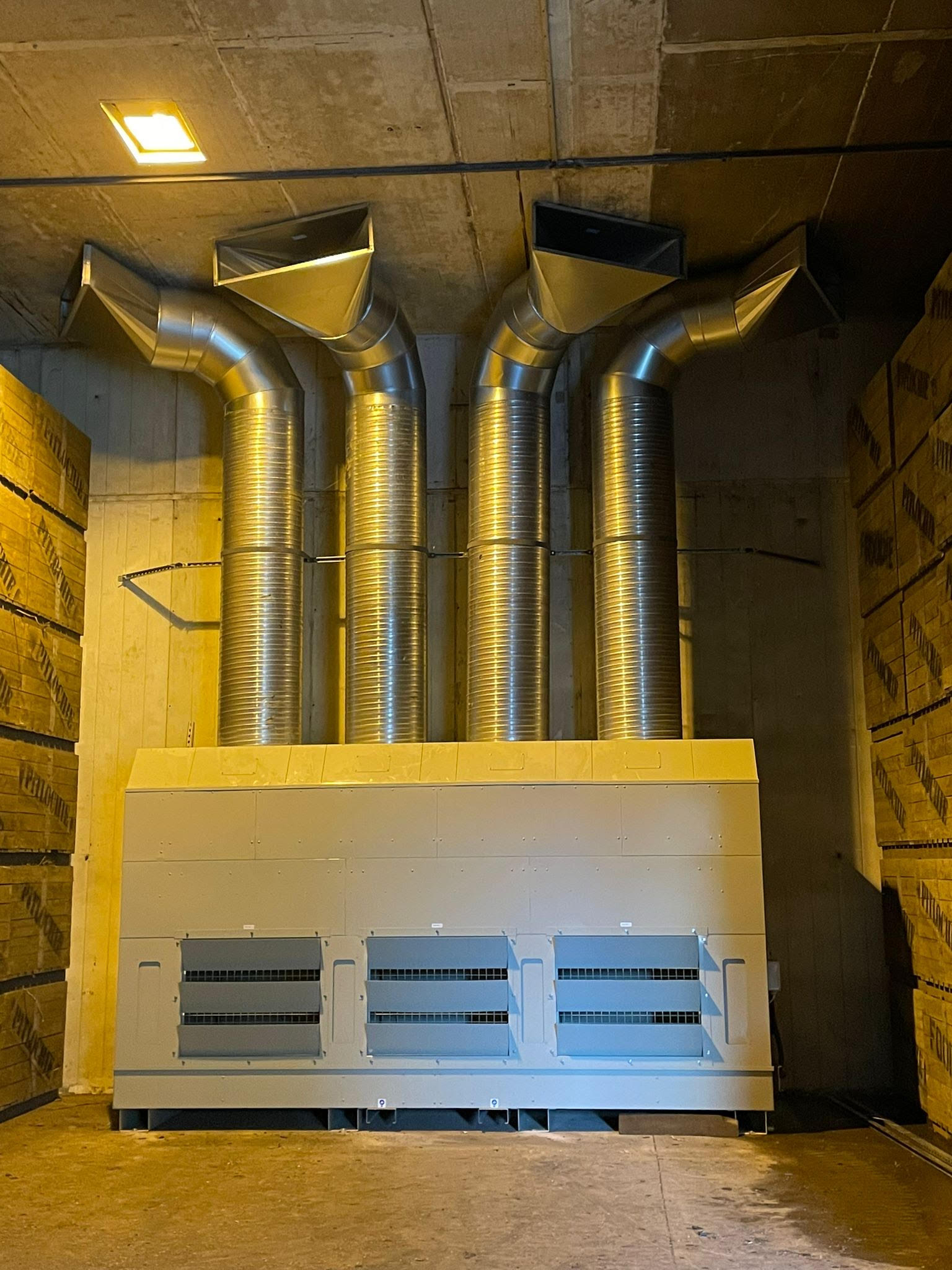

Potato Storage Ventilation Installation in 2021
-
![Photo of Roof Cowl and Mesh Ends]( "Roof Cowl and Mesh Ends")

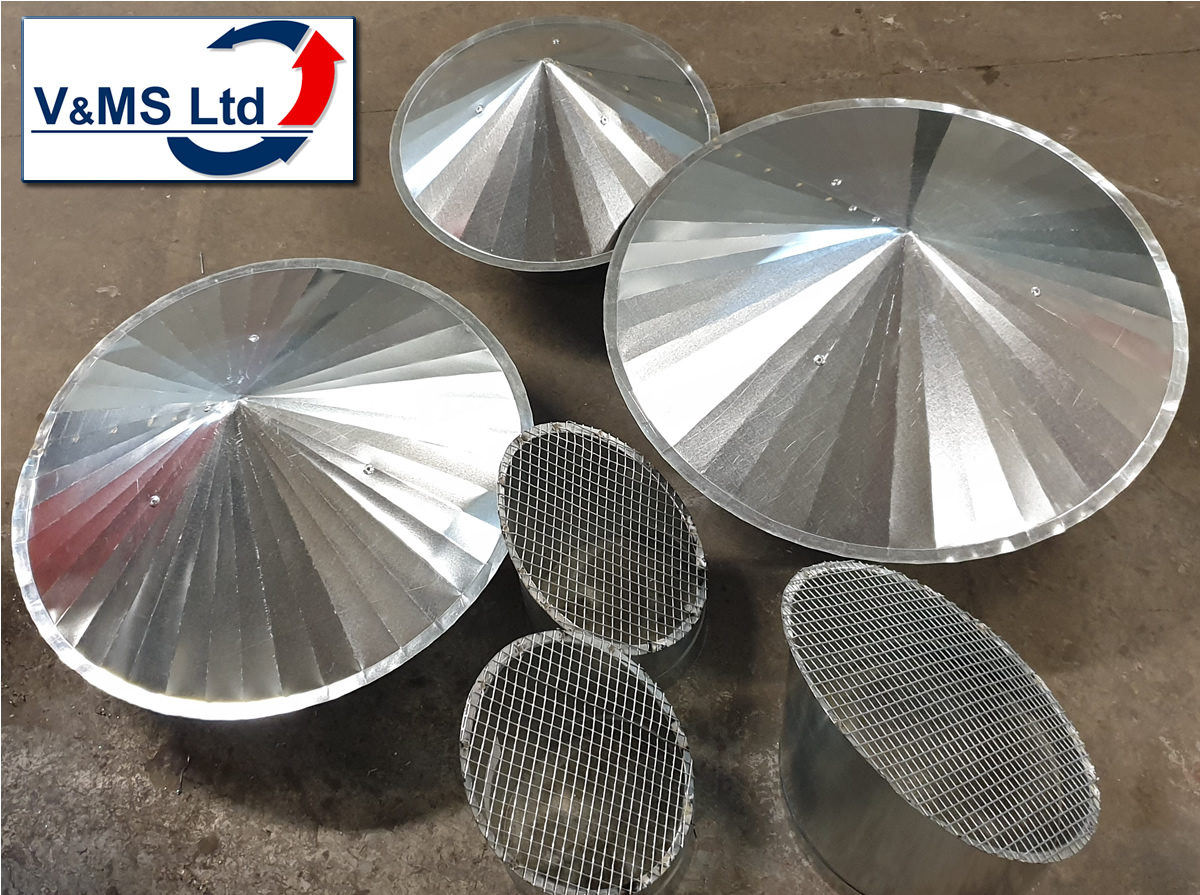

Roof Cowl and Mesh Ends
-
![Plenum Grille Boxes]( "24plenumgrilleboxesbadged")

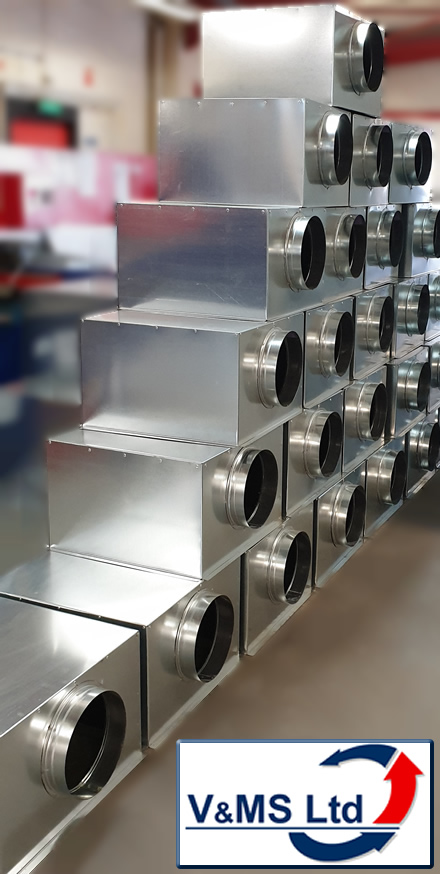

Plenum Grille Boxes
-
![]( "welding4cm")

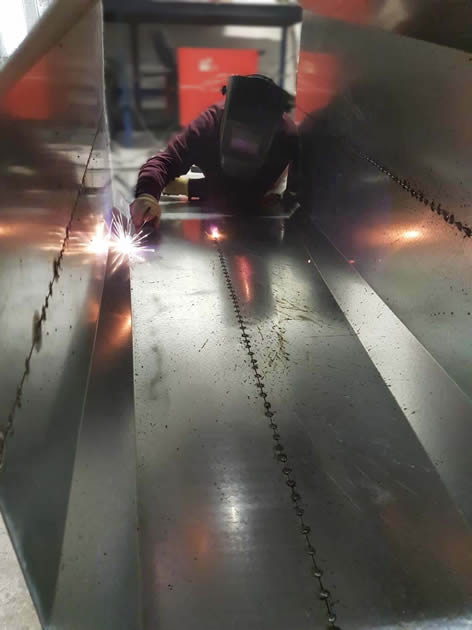

A one of a kind bespoke custom-made piece of duct being welded.
-
![]( "duc002-4cm")

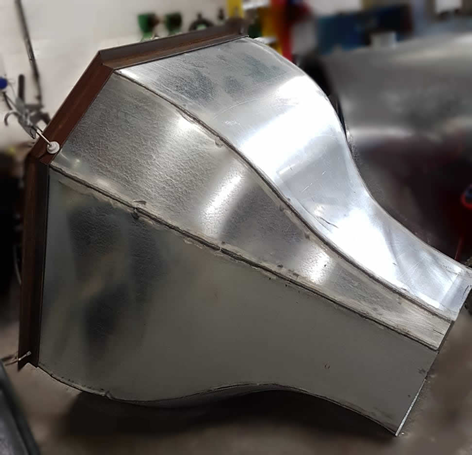

A one of a kind bespoke custom-made piece of duct with welding now at an advanced stage and nearing completion.
-
![]( "duc001-4cm")

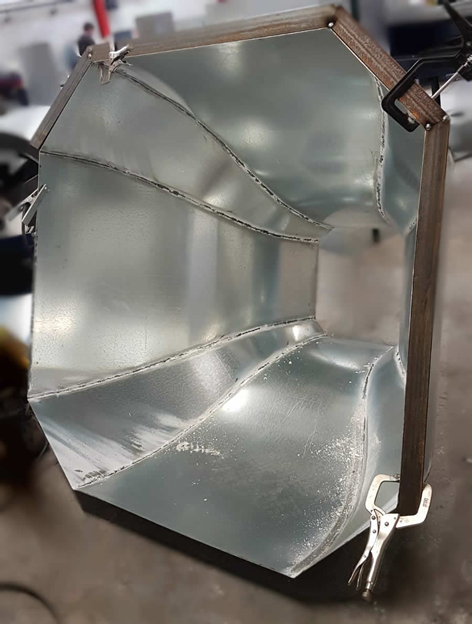

A one of a kind bespoke custom-made piece of duct being formed ready for welding
-

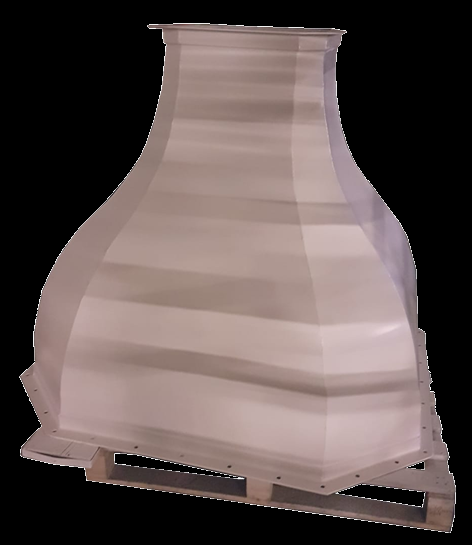

![]( "duc003-4cm - Copy")
A one of a kind bespoke custom-made piece of duct completed and ready for despatch
-
![Photo of Plenum Boxes]( "Plenum Boxes - VMS BADGED-6")

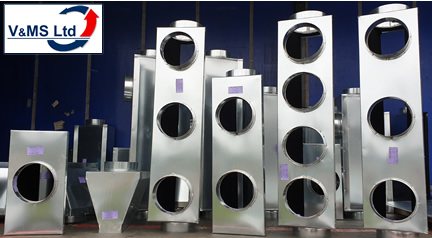

A selection of Plenum Boxes
-
![palleted grille boxes]( "50 Grille Boxes-a")

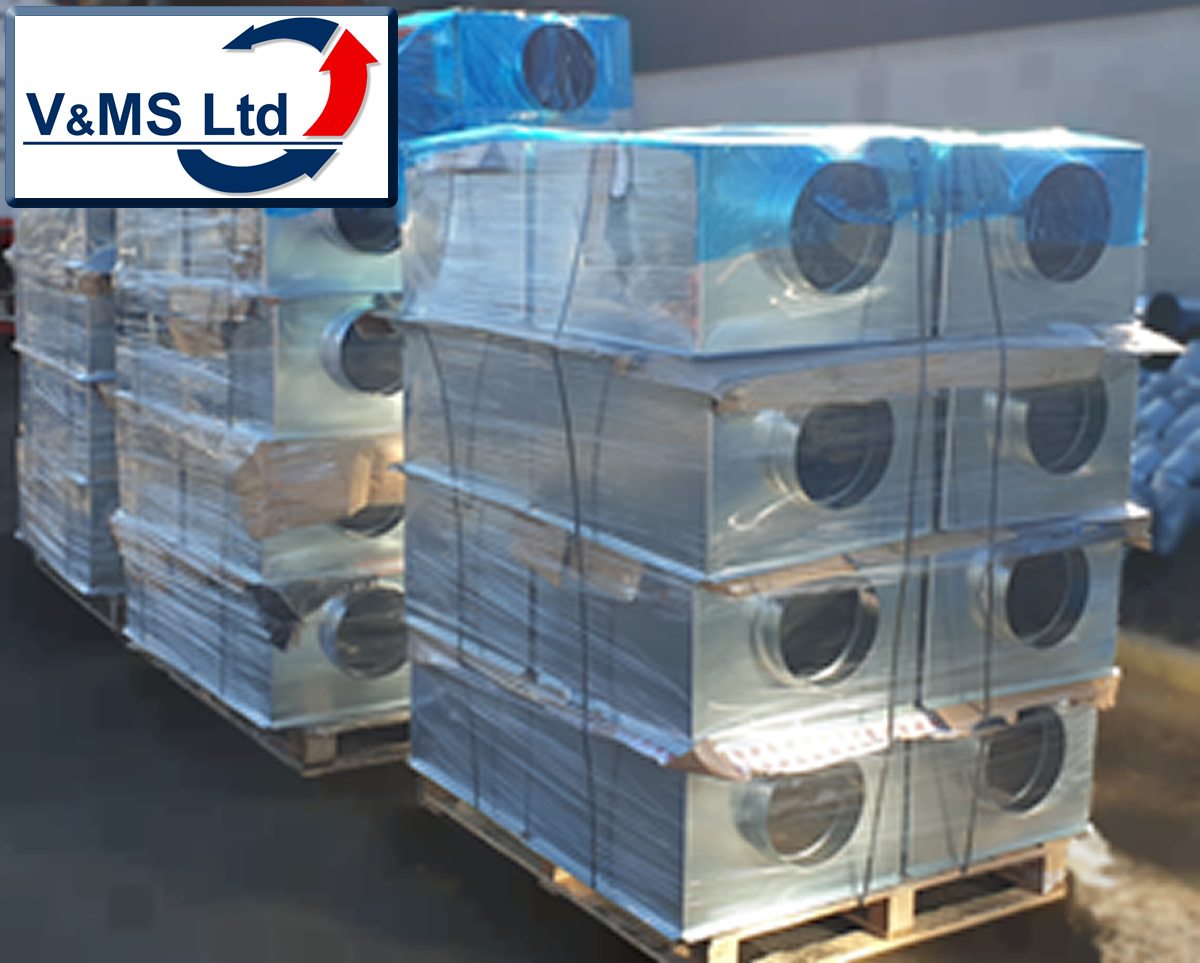

Manufactured Grille Boxes ready for despatch
-
![Lorry Load of Rectangular Duct]( "Lorry Load of Rectangular Duct")

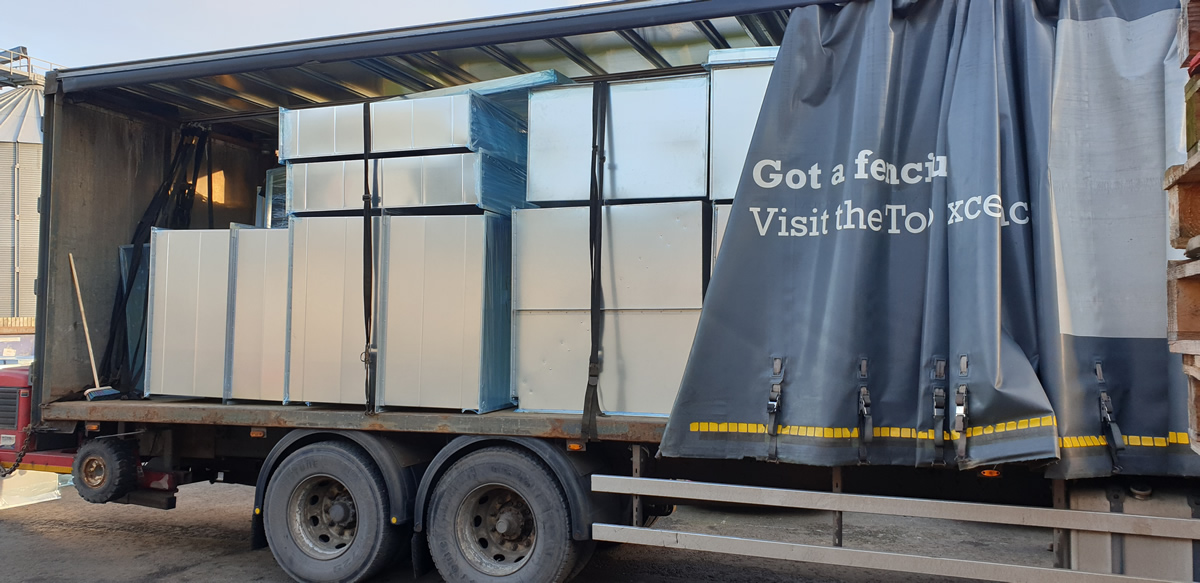

Load of Rectangular Duct loaded ready for despatch
-
![Pictures of 1800ø Bends Being Loaded]( "received_176162790281470")

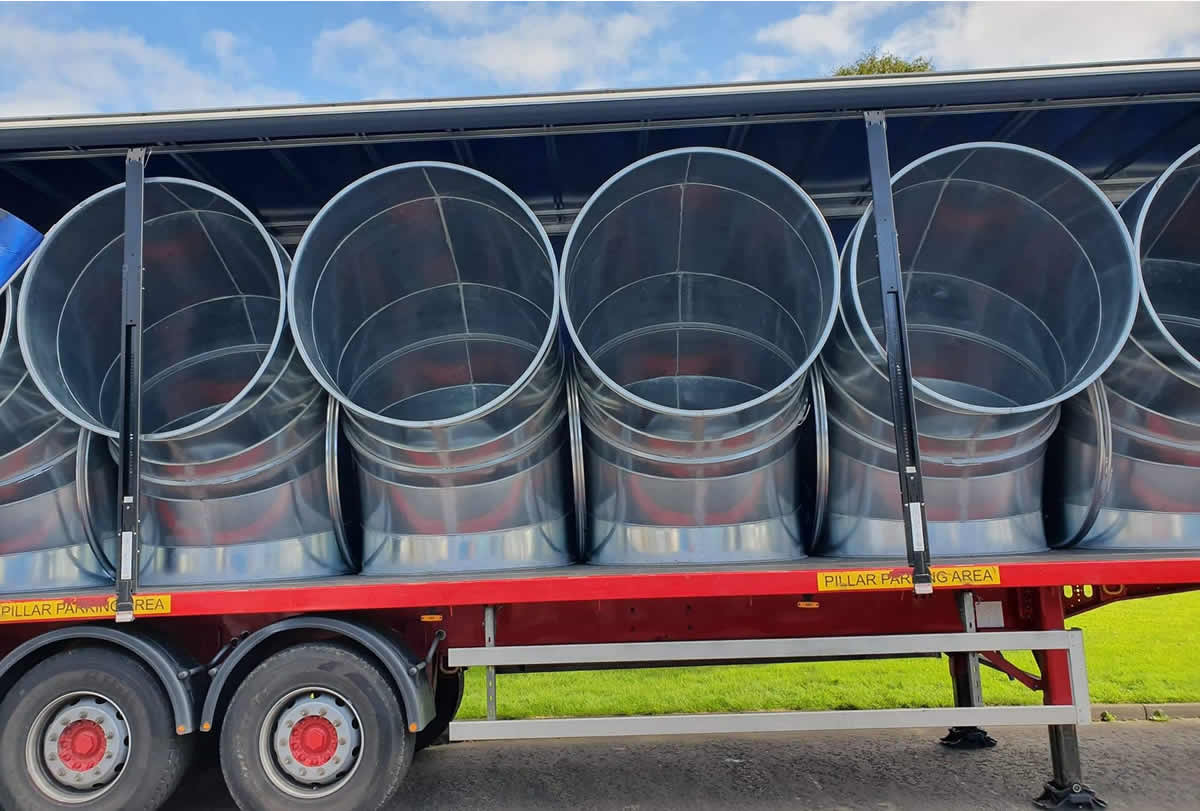

1800 dia bends loaded ready for despatch
-
![Photo of 900 dia Bends and Reducer]( "900 dia Bends and Reducer - Blurred")

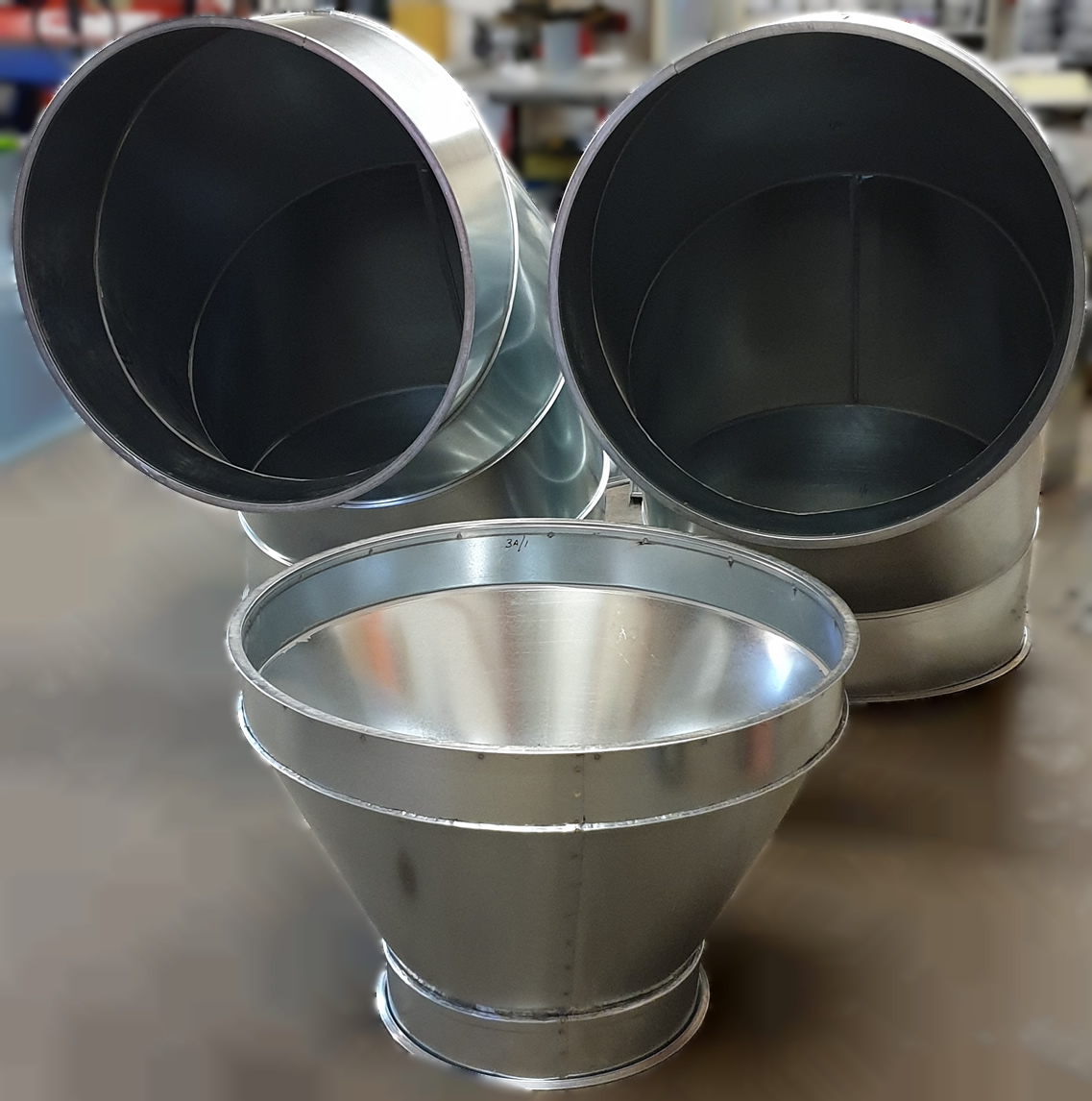

900 dia Bends and Reducer
-
![straight-spigot]( "straight-spigot")

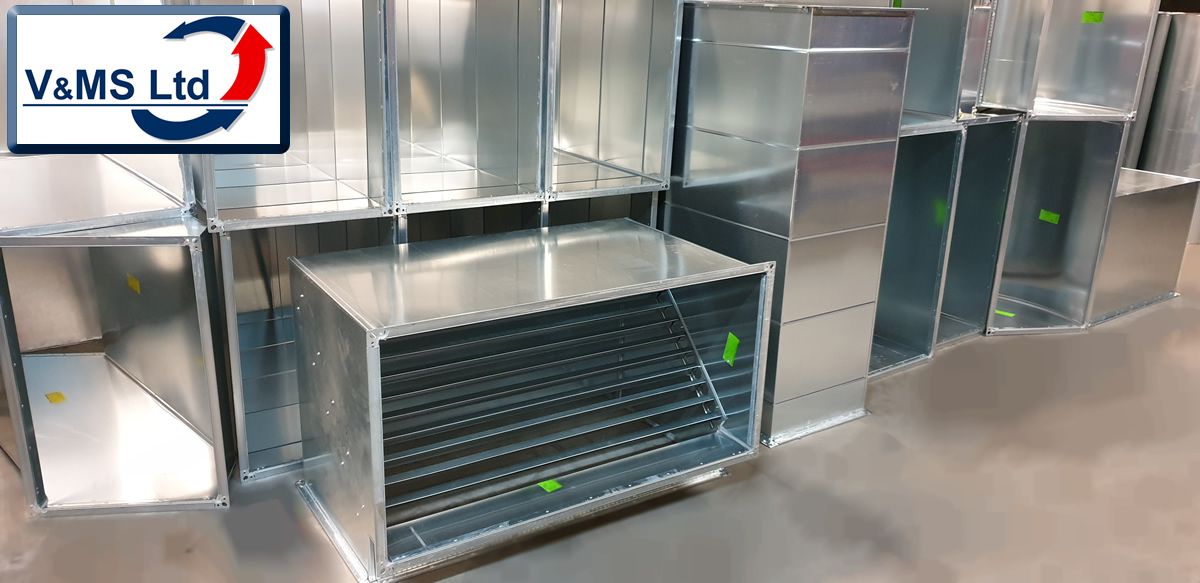

Straight Spigots
-

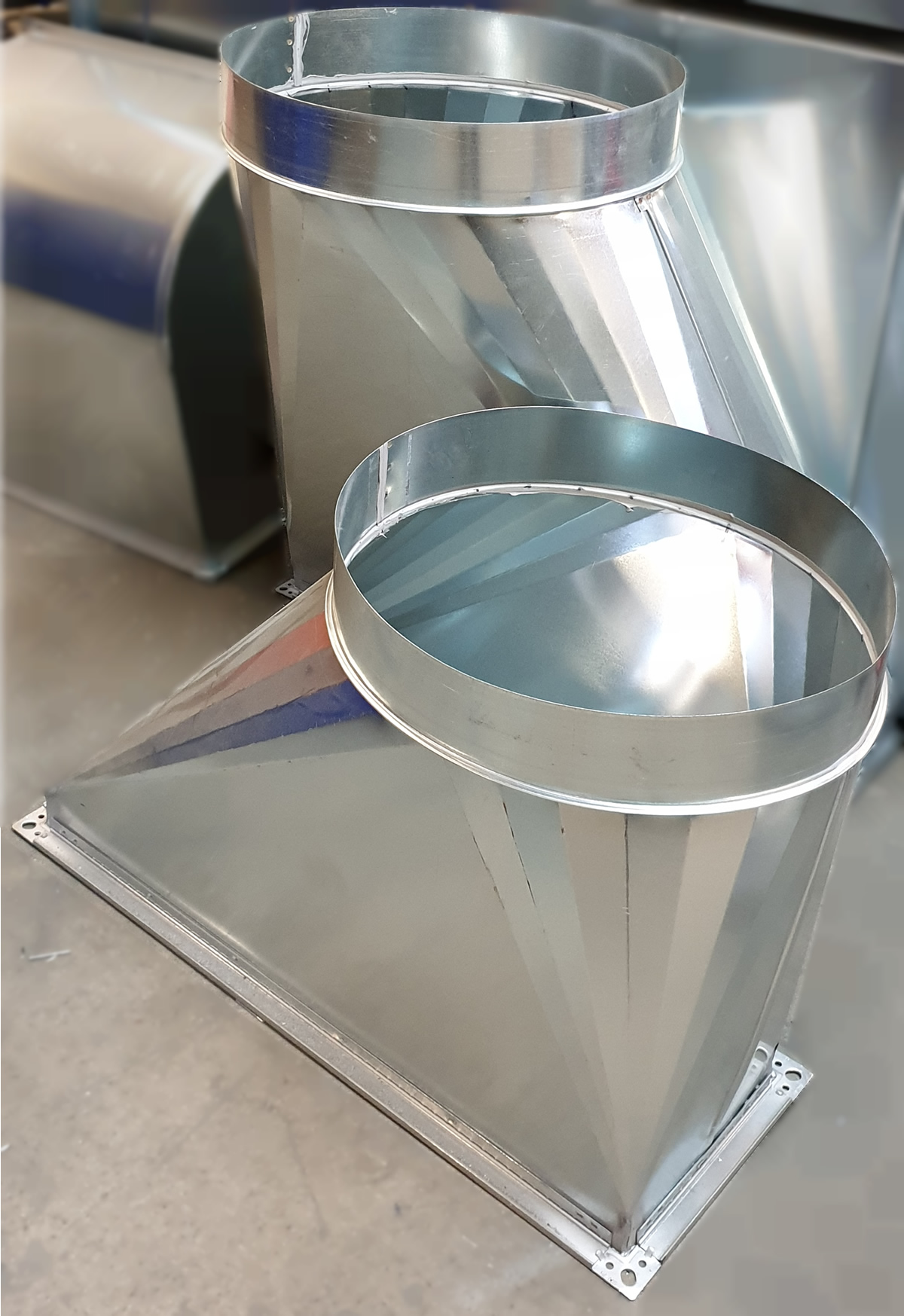

![Square to Round]( "Square to Round4")
Square to Rounds
-
![4 Pallets of ducting]( "4-pallets-duct")
An order of various items of ductwork ready for despatch to our client for next day delivery.
-
![Forklift with large duct]( "forklift-duct")

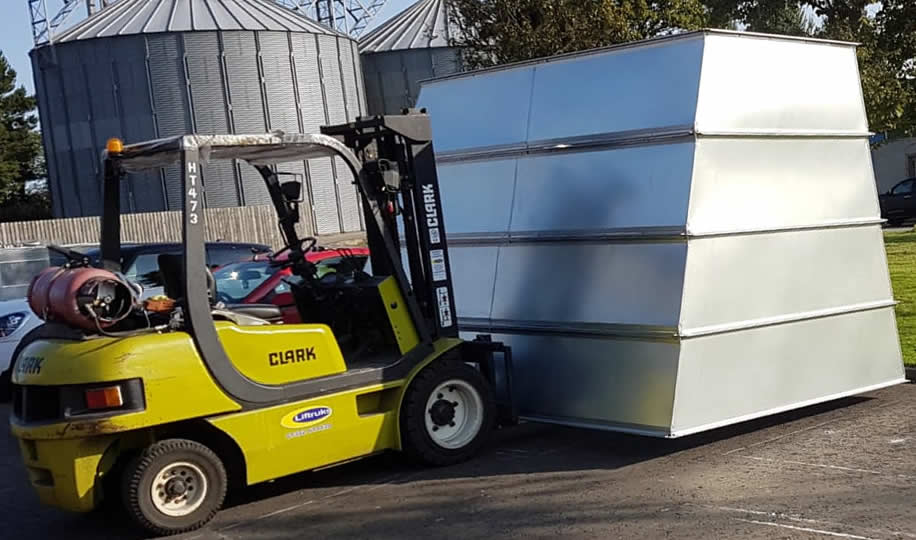

A larger piece of duct being made ready for loading
-

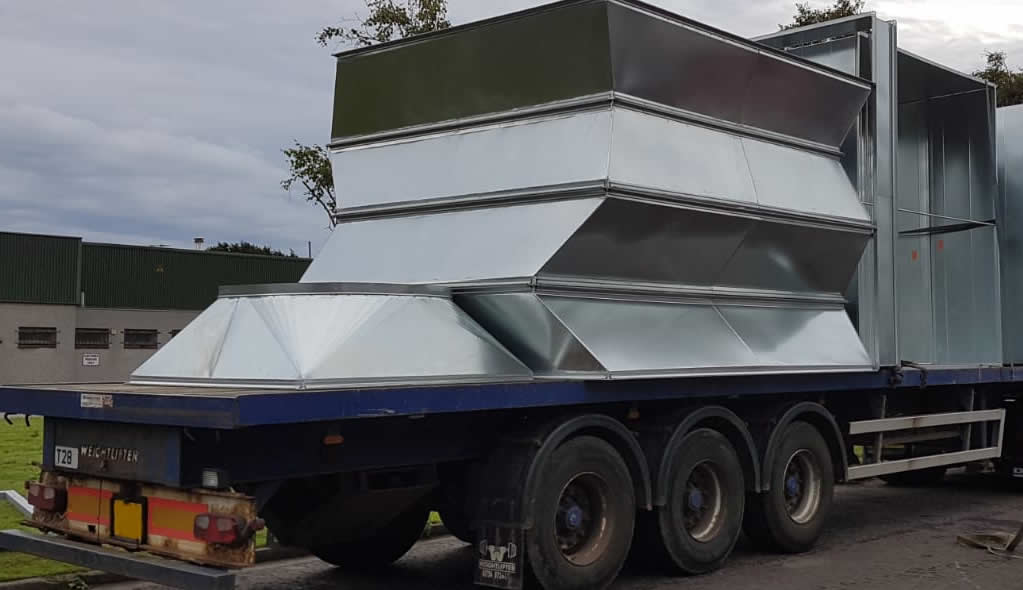

![Large duct on trailer]( "lorry-duct")
Larger duct items loading ready for despatch
-
![]( "duct-on-forklift-blurred")
A larger piece of duct being prepared for loading with the forklift and loaded providing a real idea of size.
-
![Large Stainless Steel Bend]( "stainless_steel_bend0350")
Large stainless steel bend
-
![lorry loaded with fully welded galvanised pipes]( "galv-welded-pipe")

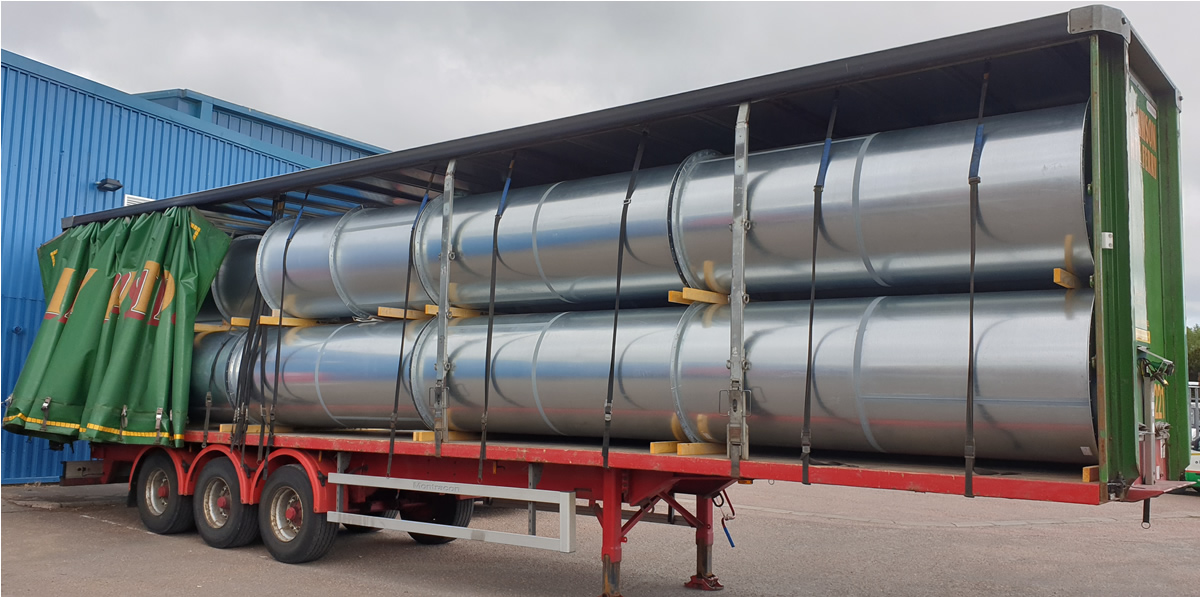

lorry loaded with fully welded galvanised pipes
-

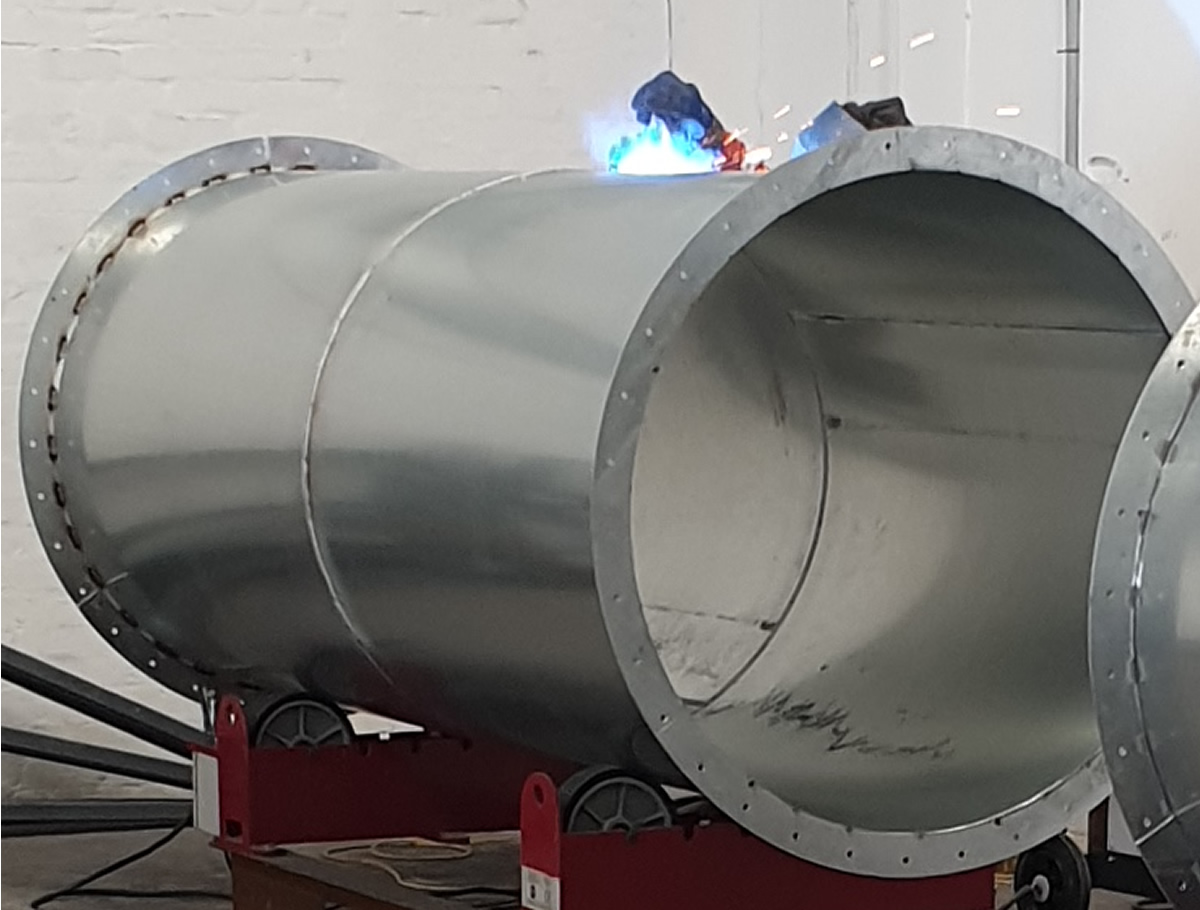

![welding]( "galve-pipe-welding01")
46" diameter galvanised pipe on rotator being welded
-
![Welder in action on rotator]( "galv---pipe-welding03")

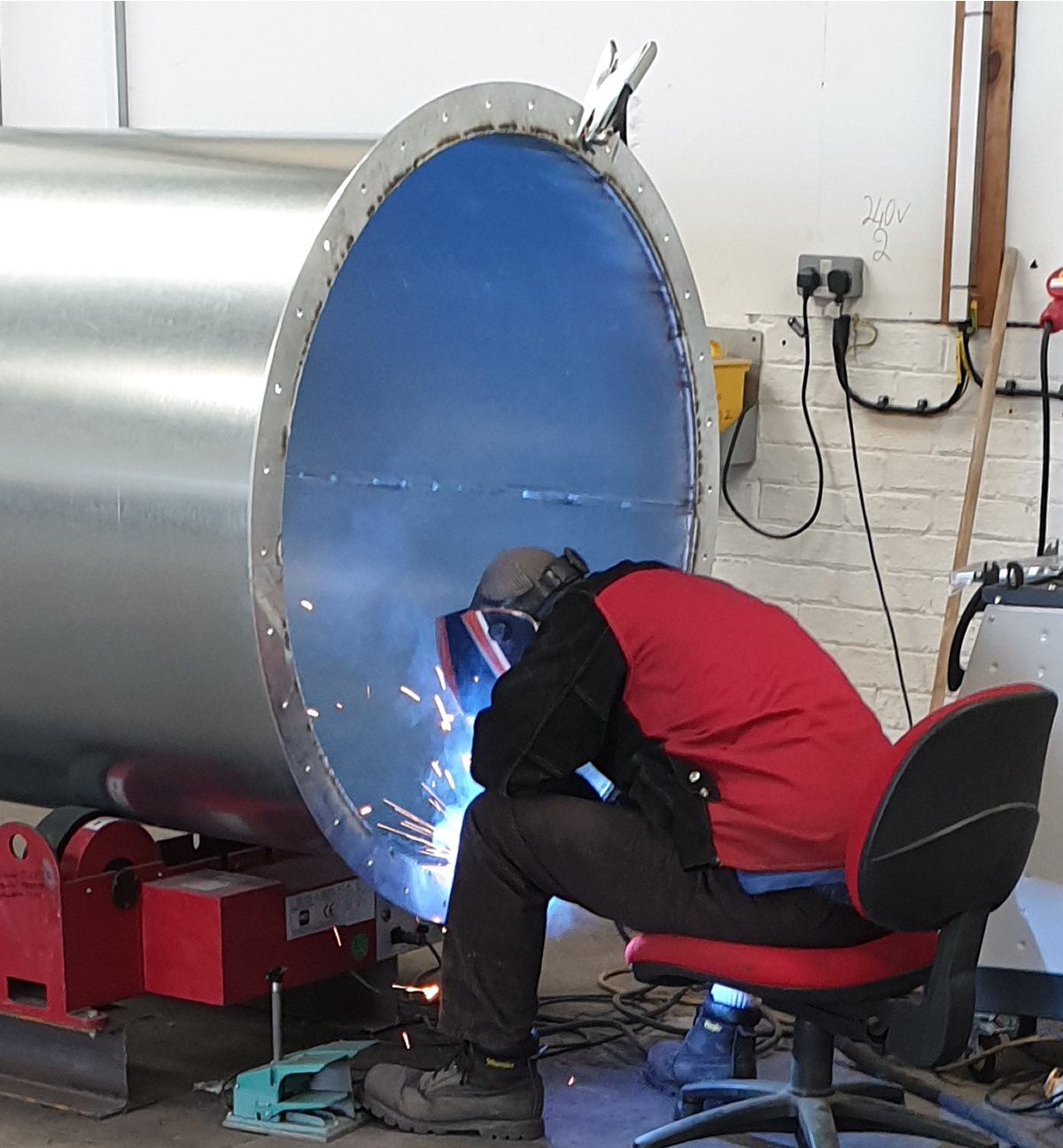

Welder in action using a rotator
-
![Welder in action on rotator]( "galv-pipe-welding02")
Welder in action on rotator
-
![Loading large fully welded pipes onto lorry]( "20200616_145009-02")

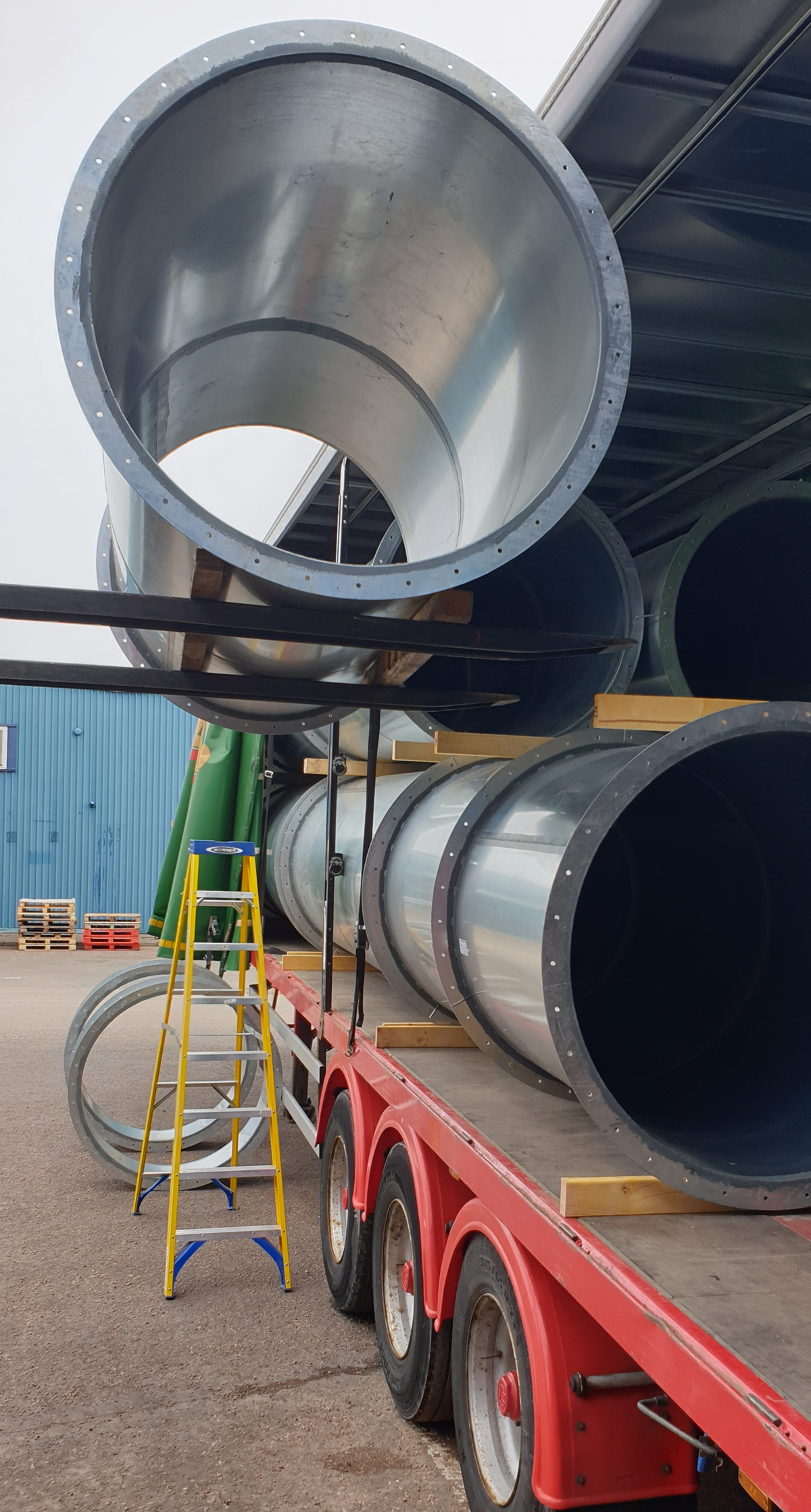

Loading large fully welded pipes onto lorry
-
![Welded Pipes with Branches]( "pipe with branches3")
Fully welded 46" diameter pipes with branches welded.
-
![Welder in action]( "welding-poc-framed-logo600")
Welder in action welding branches into position
-
![Galvanised pipes for welding]( "29-10-2020-pipes")
Galvanised pipes for welding
-

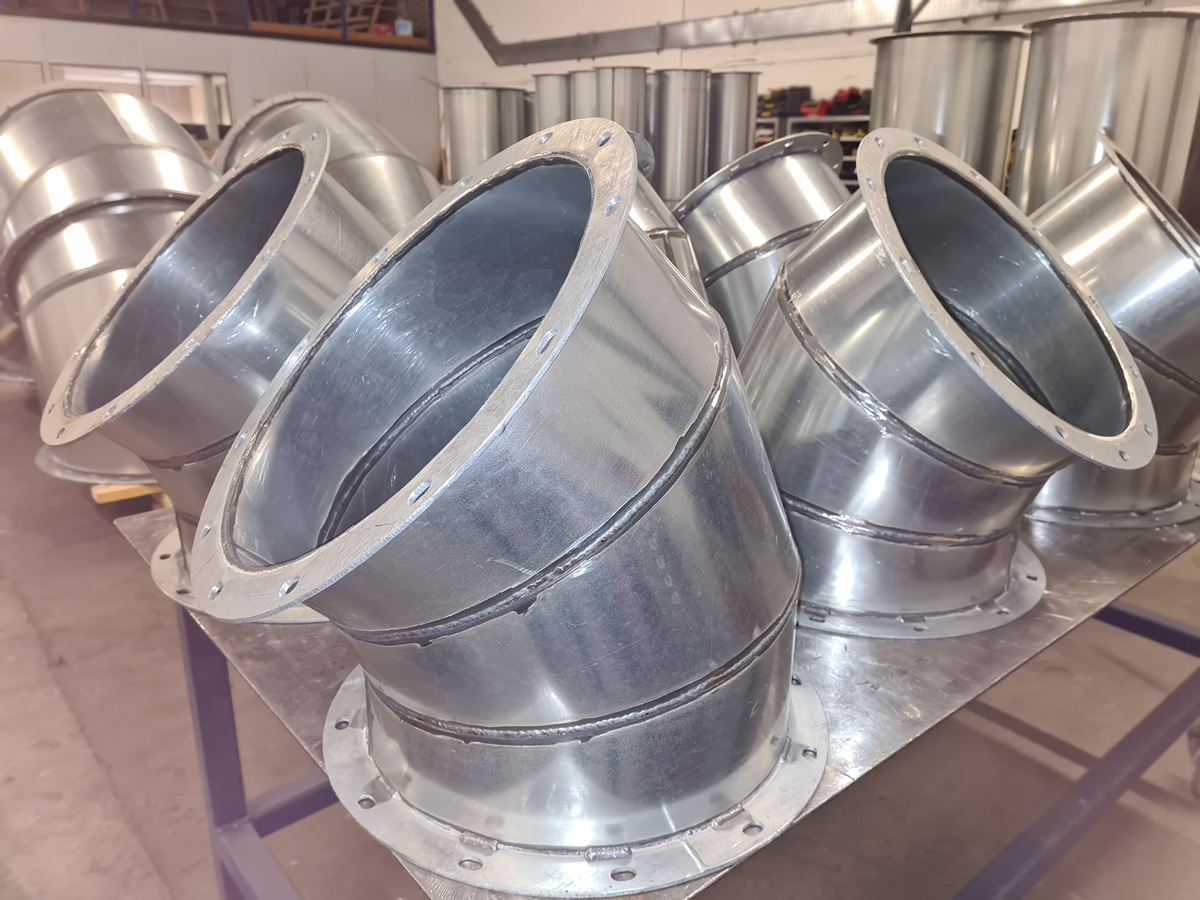

![Welded and awaiting welds painting]( "awaiting-painting")
Welded and awaiting weld seams painting
-
![fully welded bends ready for shipping]( "3-items-bends")

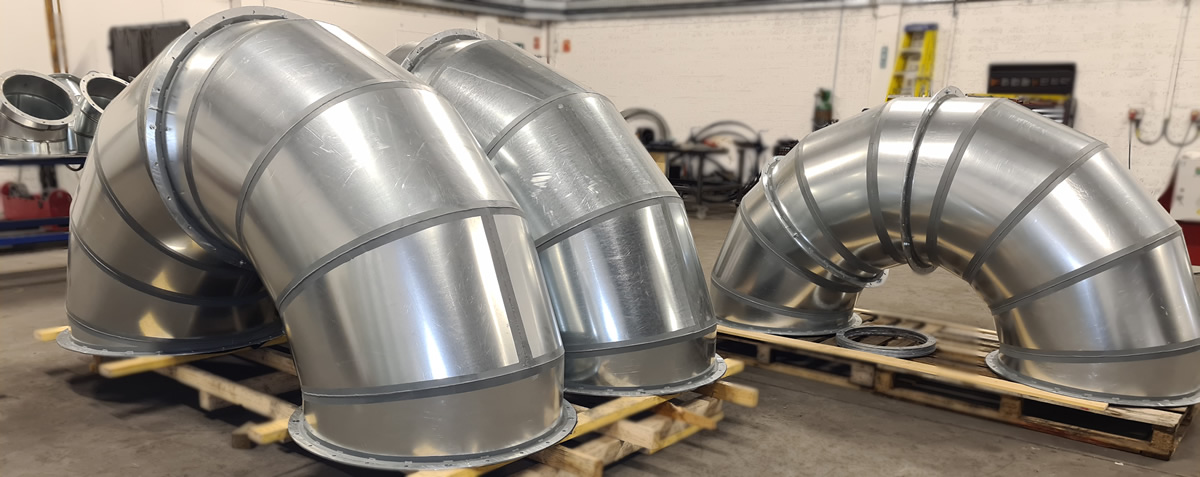

Fully welded galvanised bends ready for shipping
-
![galvanised pipework and bends tacked ready for welding]( "20201015_171627")

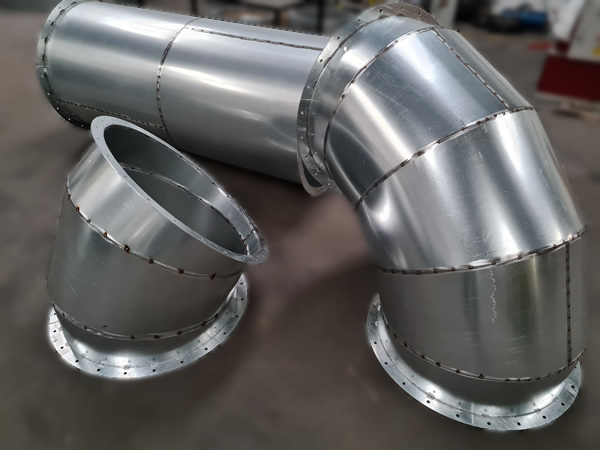

Galvanised pipework and bends tacked ready for welding
-
![galvanised pipework with branches]( "galvanised pipework with branches")

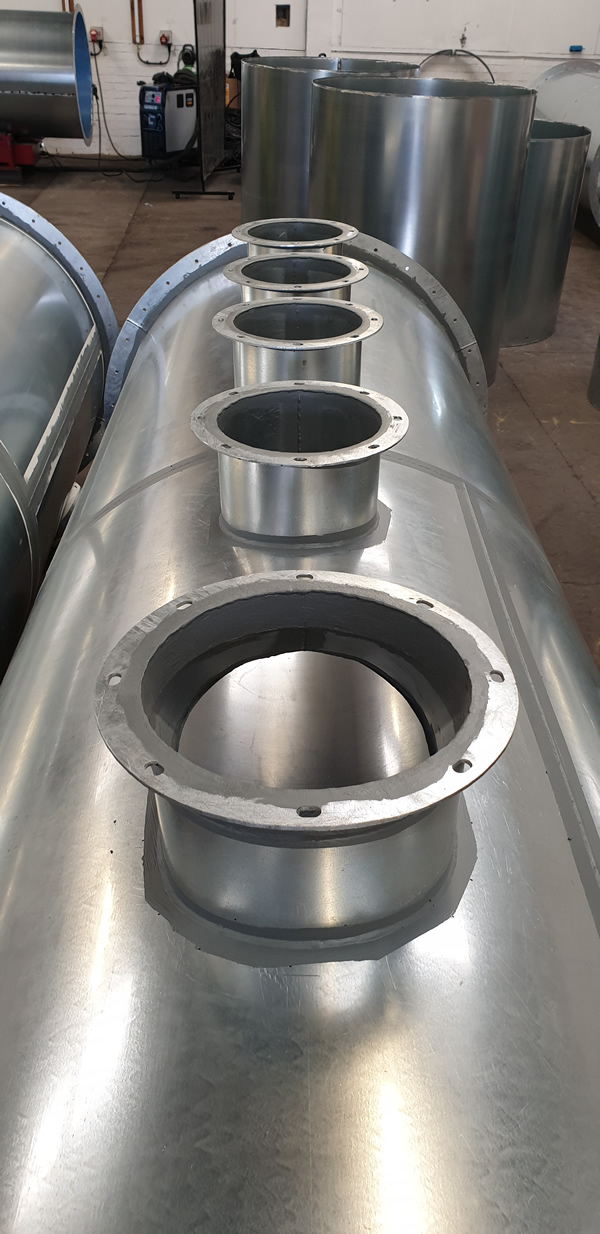

fully welded galvanised pipe complete with a number of branches welded into position.
-
![Fully Welded 90]( "90INCH PIPE WELDING01")

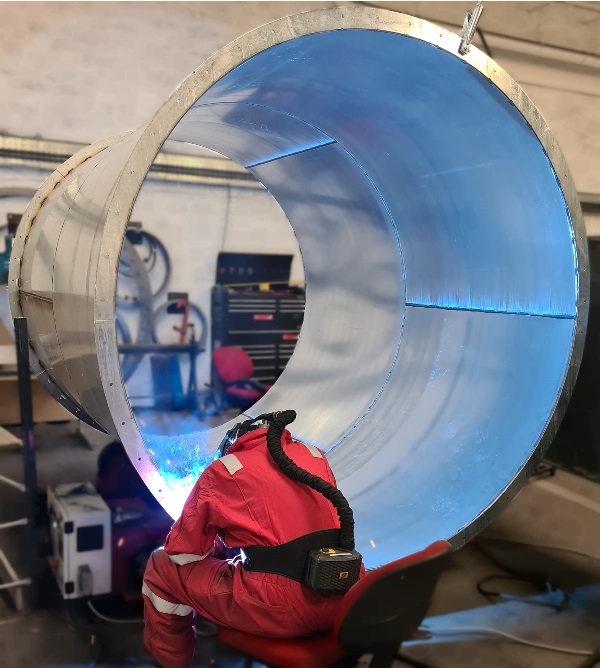

90" galvanised pipe being welded
-
![Fully welded Galvanised 90]( "90INCH PIPES AND BENDS - MAY 2021")

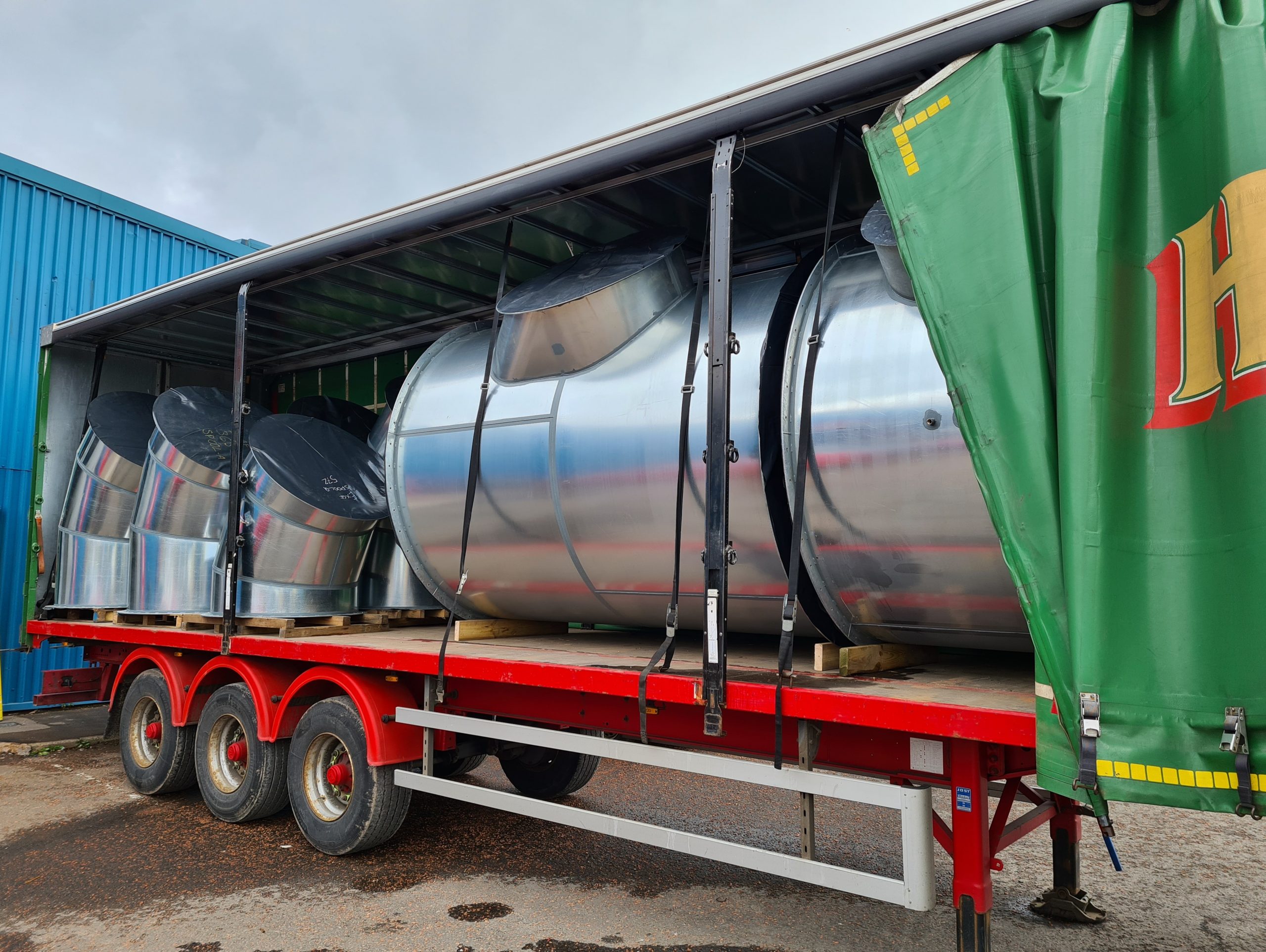

Another load of fully welded Galvanised 90" pipes and 46" bends being prepared for despatch
-
![Duct Flanges]( "20210618_082054")

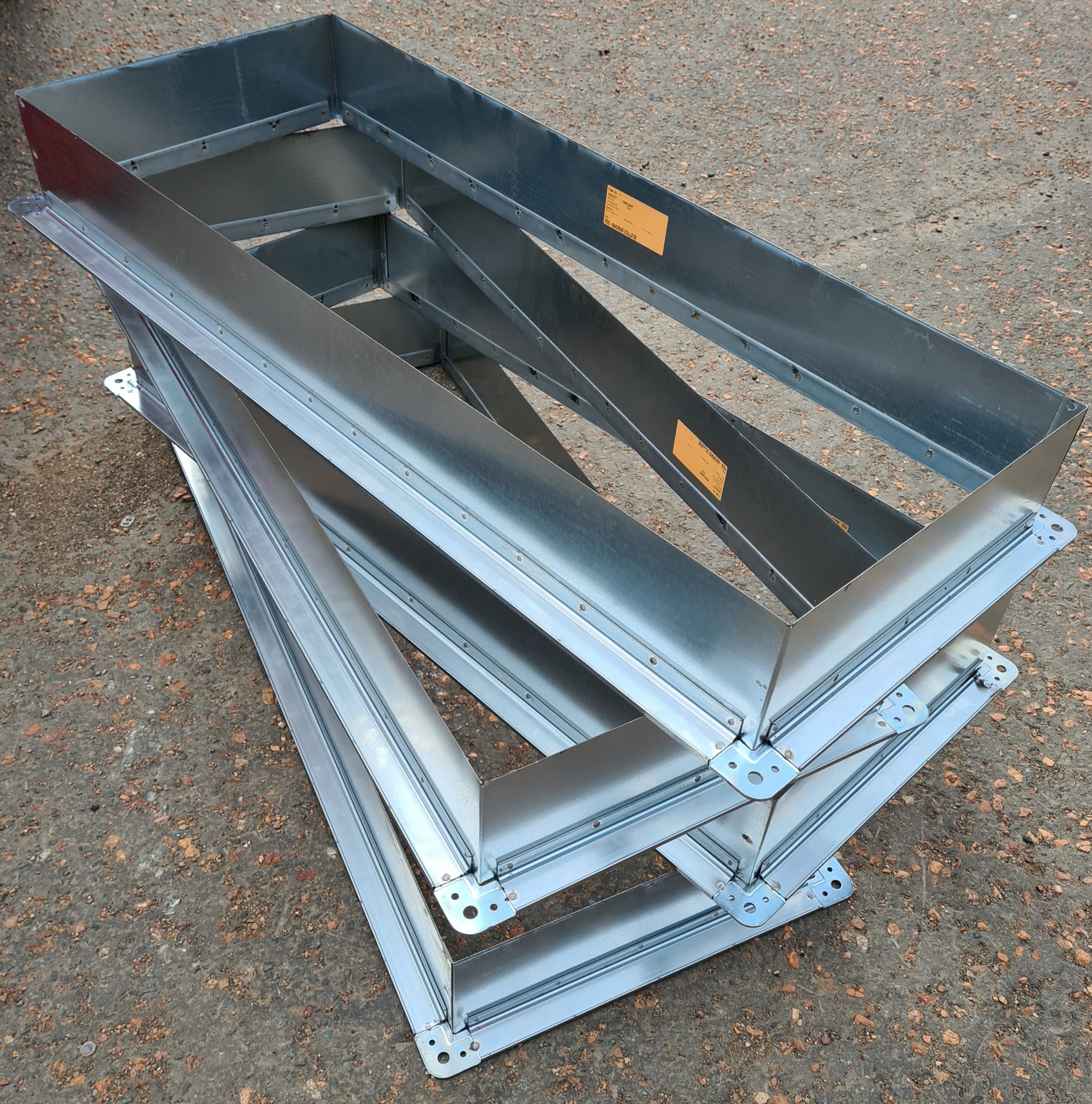

Rectangular frames ready for collection by customer
-
![Fully Welded 126" to 90" reducer in galvanised]( "20210816_084217b")
Fully Welded 126" to 90" reducer in galvanised
-

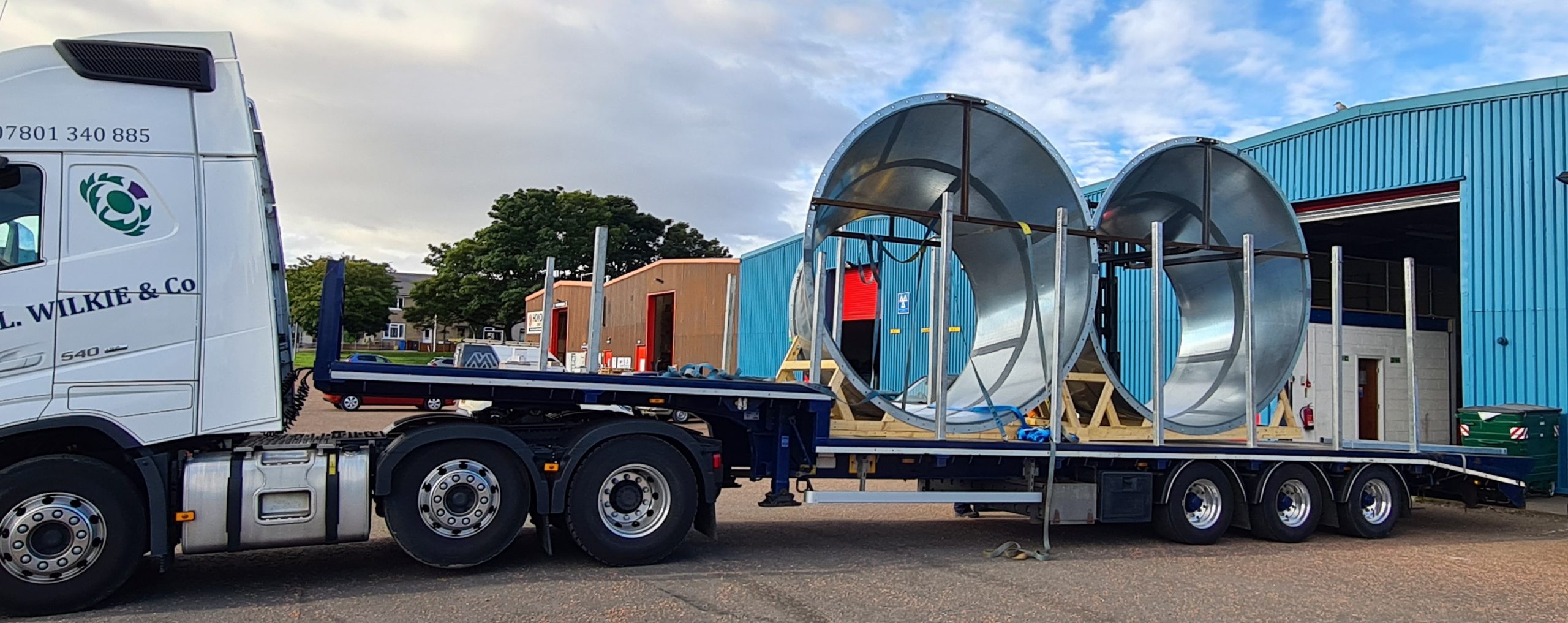

![Fully Welded 126" to 90" reducers being loaded onto low loader for transport to Ireland]( "Fully Welded 126\" to 90\" reducers being loaded onto low loader for transport to Ireland")
Fully Welded 126" to 90" reducers being loaded onto low loader for transport to Ireland
-

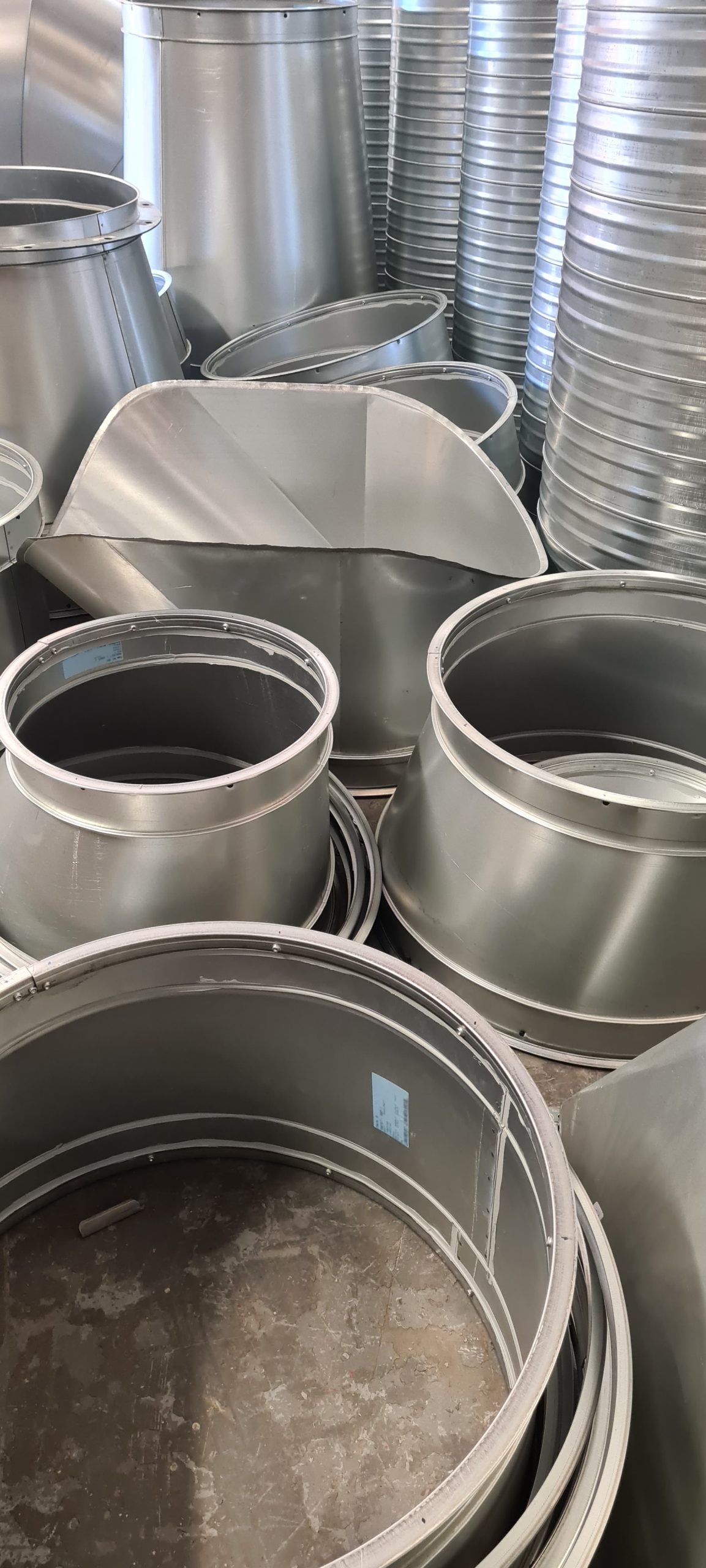

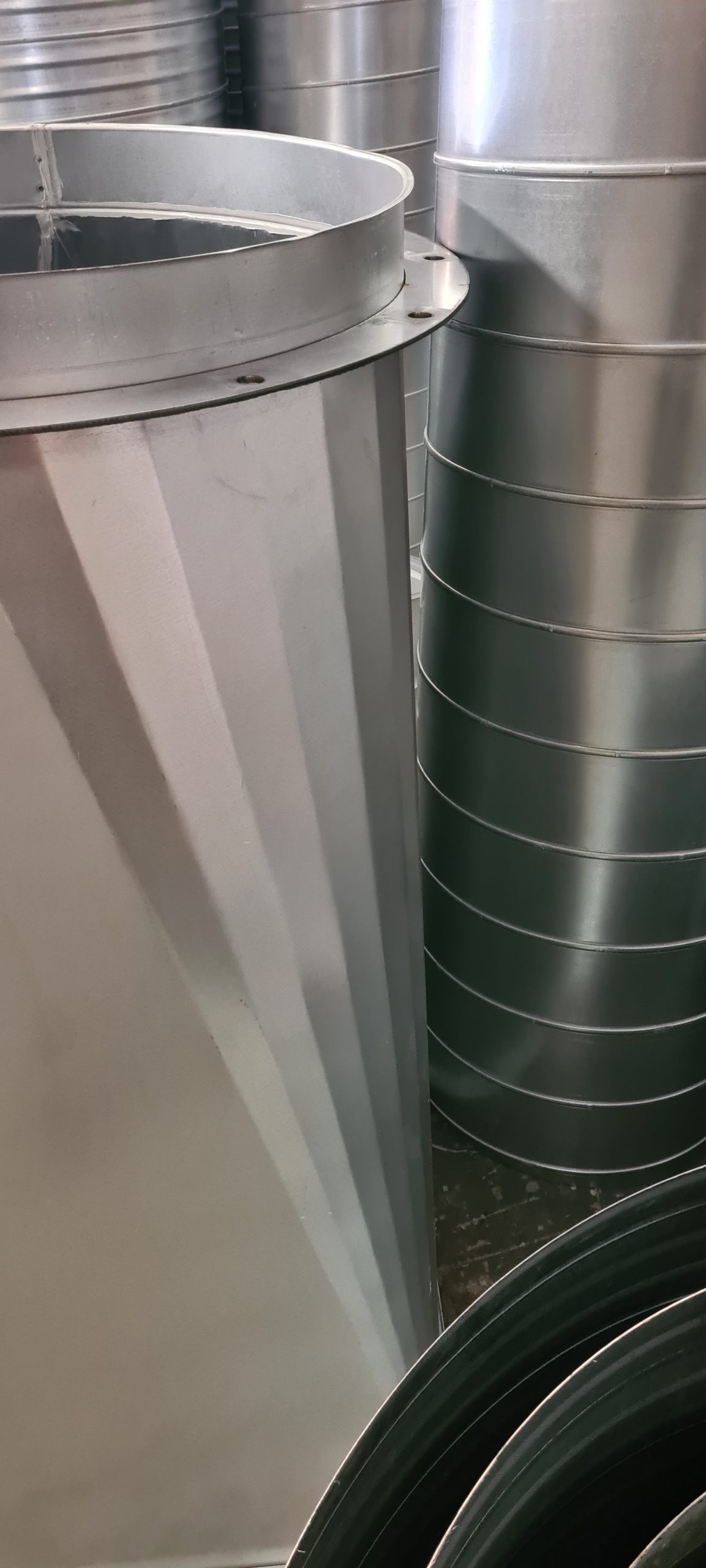

![Spiral Photos]( "Spiral Photos 01-06-2022 (1)")
-
![Spiral Photos]( "Spiral Photos 01-06-2022 (2)")
-
![Spiral Photos]( "Spiral Photos 01-06-2022 (3)")
-
![Duct awaiting loading to lorry for despatch]( "20220610_110422")

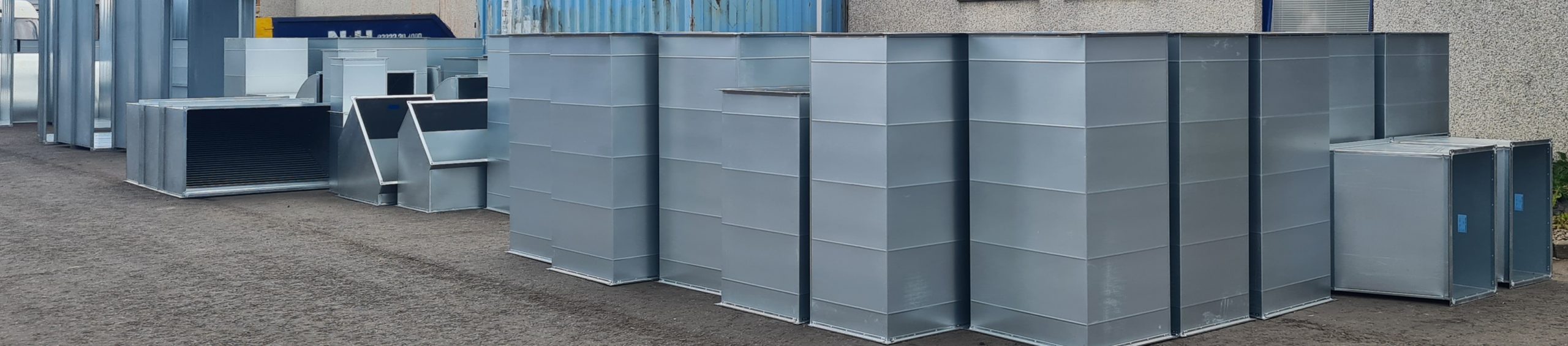

Duct awaiting loading to lorry for despatch
-
![Palleted duct]( "20220704_111805")
-

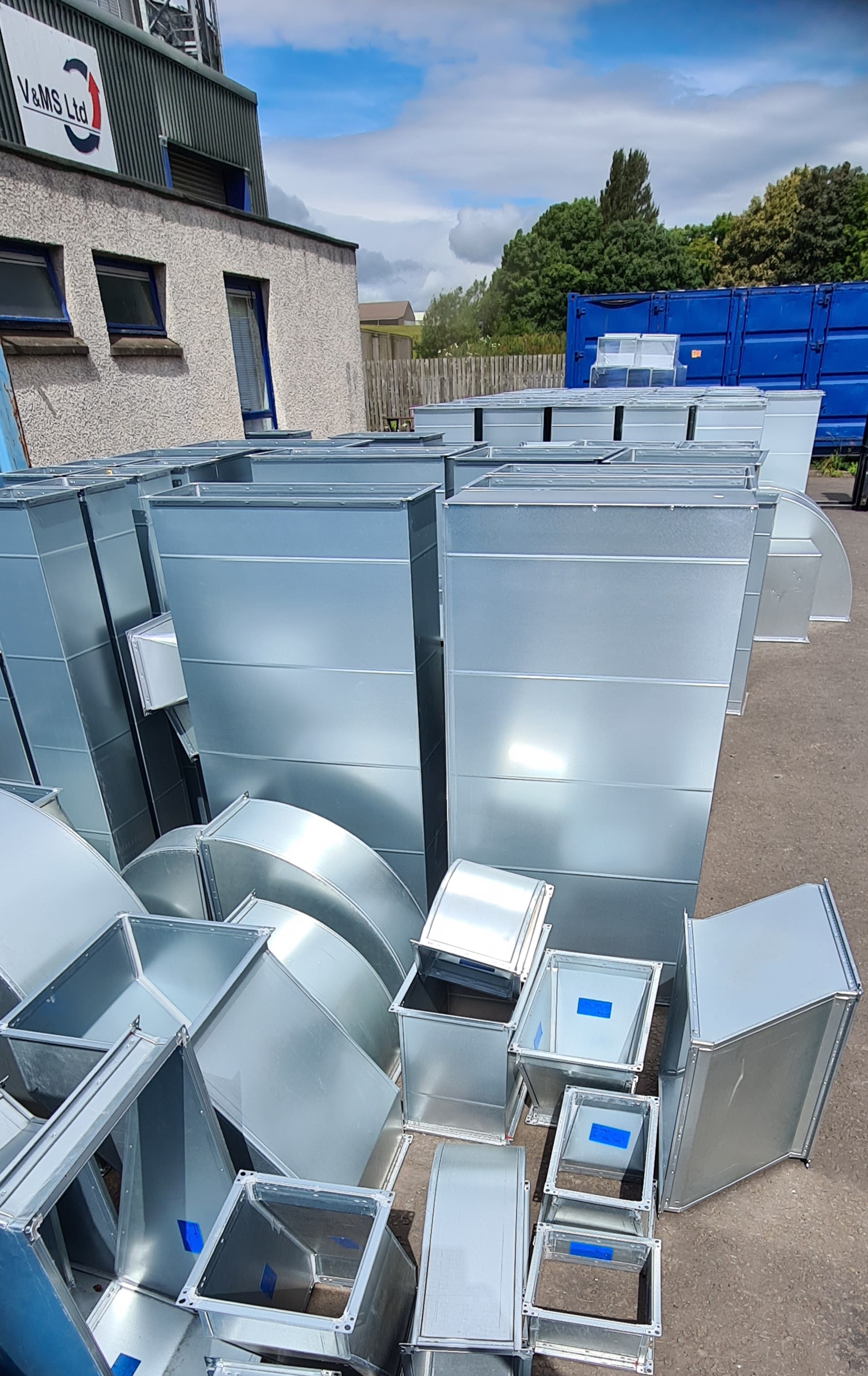

![Fabricated duct]( "20220704_111912")
-
![pipes]( "20220630_073134")
-
![Fabricated duct]( "20220704_085138")
-
![Spiral Ducting]( "vms_spiral-2")
-

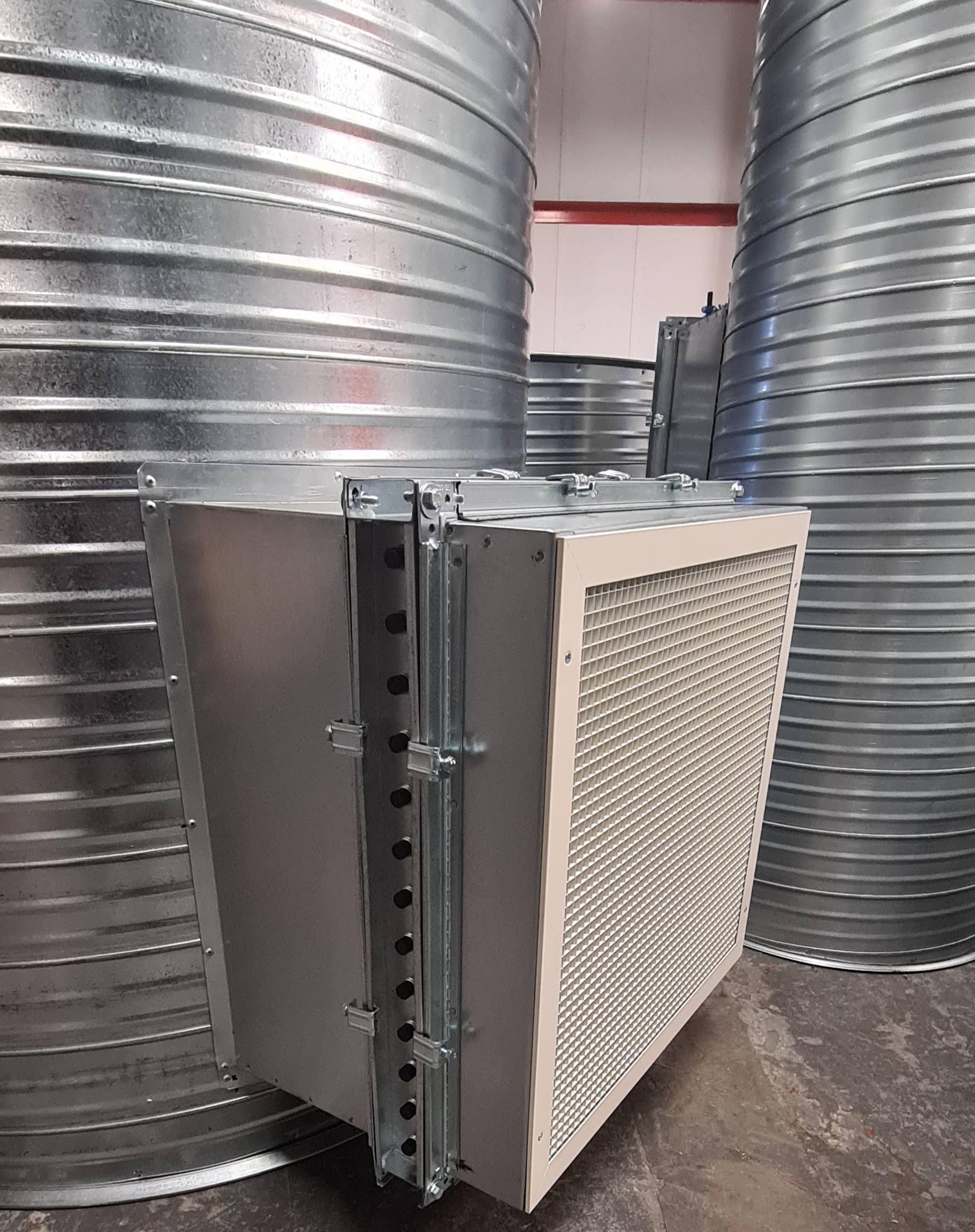

![Spiral Ducting]( "vms_spiral (3)")
-

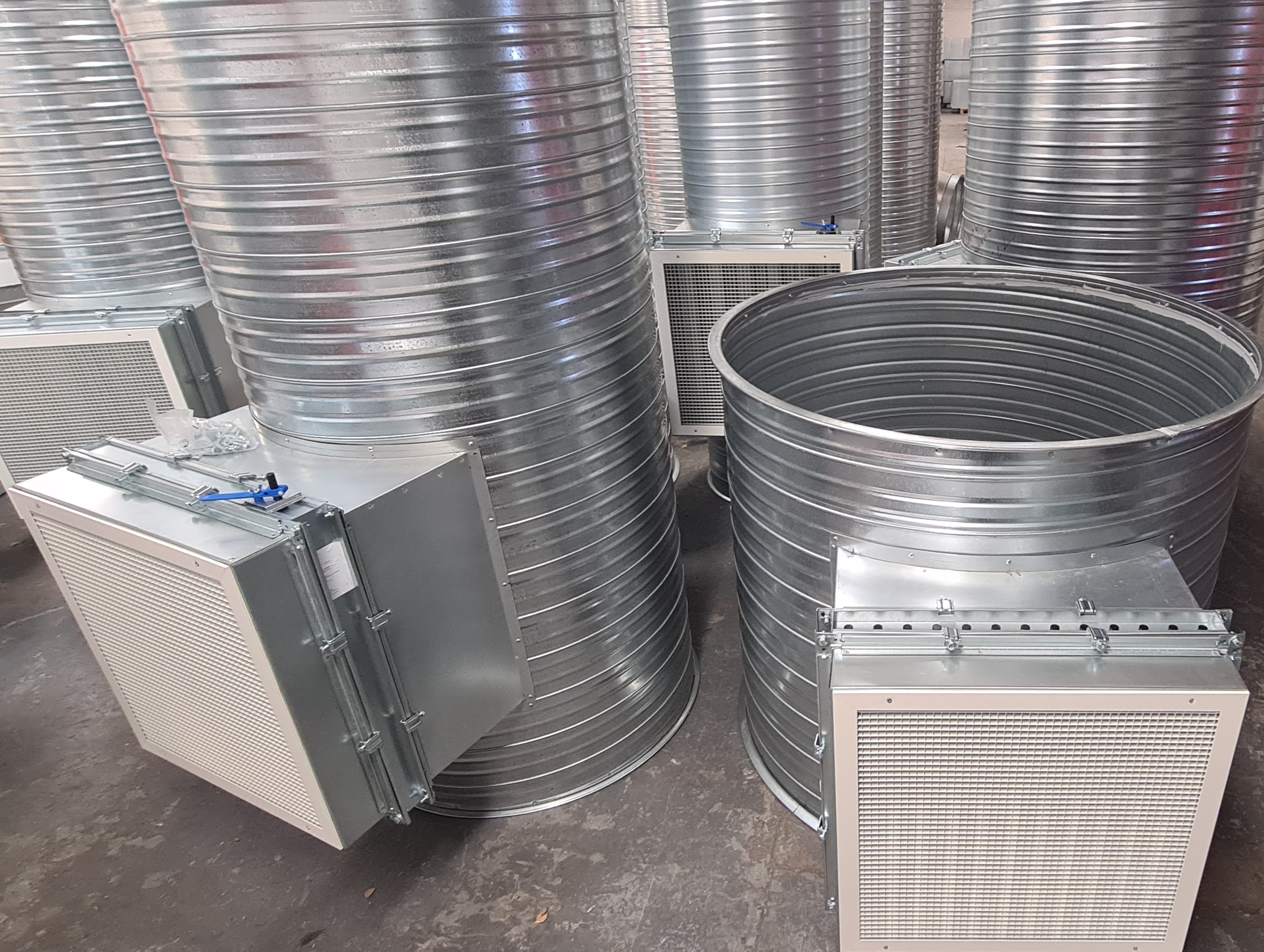

![Spiral Ducting]( "vms_spiral (4)")
-
![Spiral Ducting]( "vms_spiral-1")
-

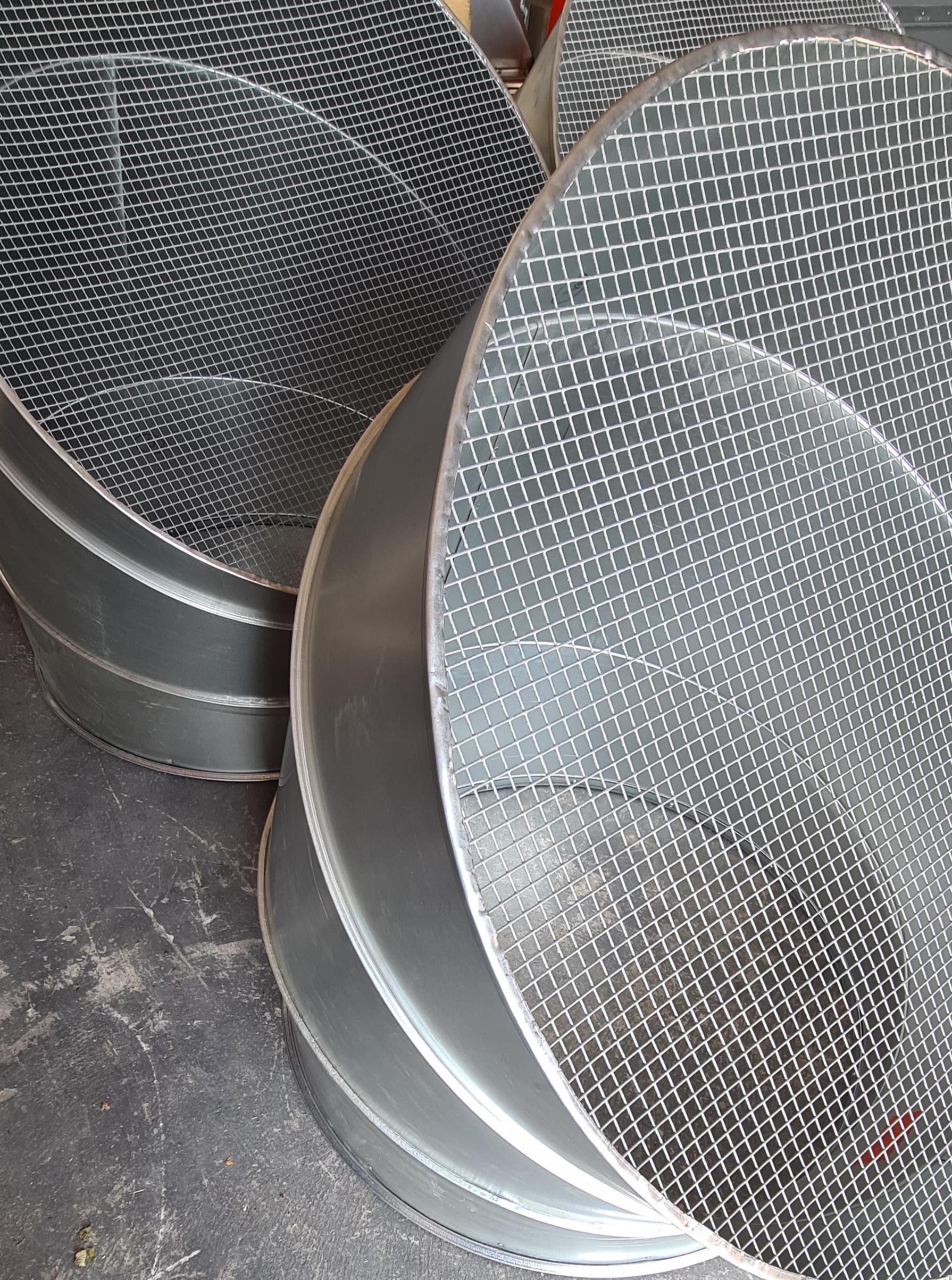

![Mesh End]( "Mesh End")
-

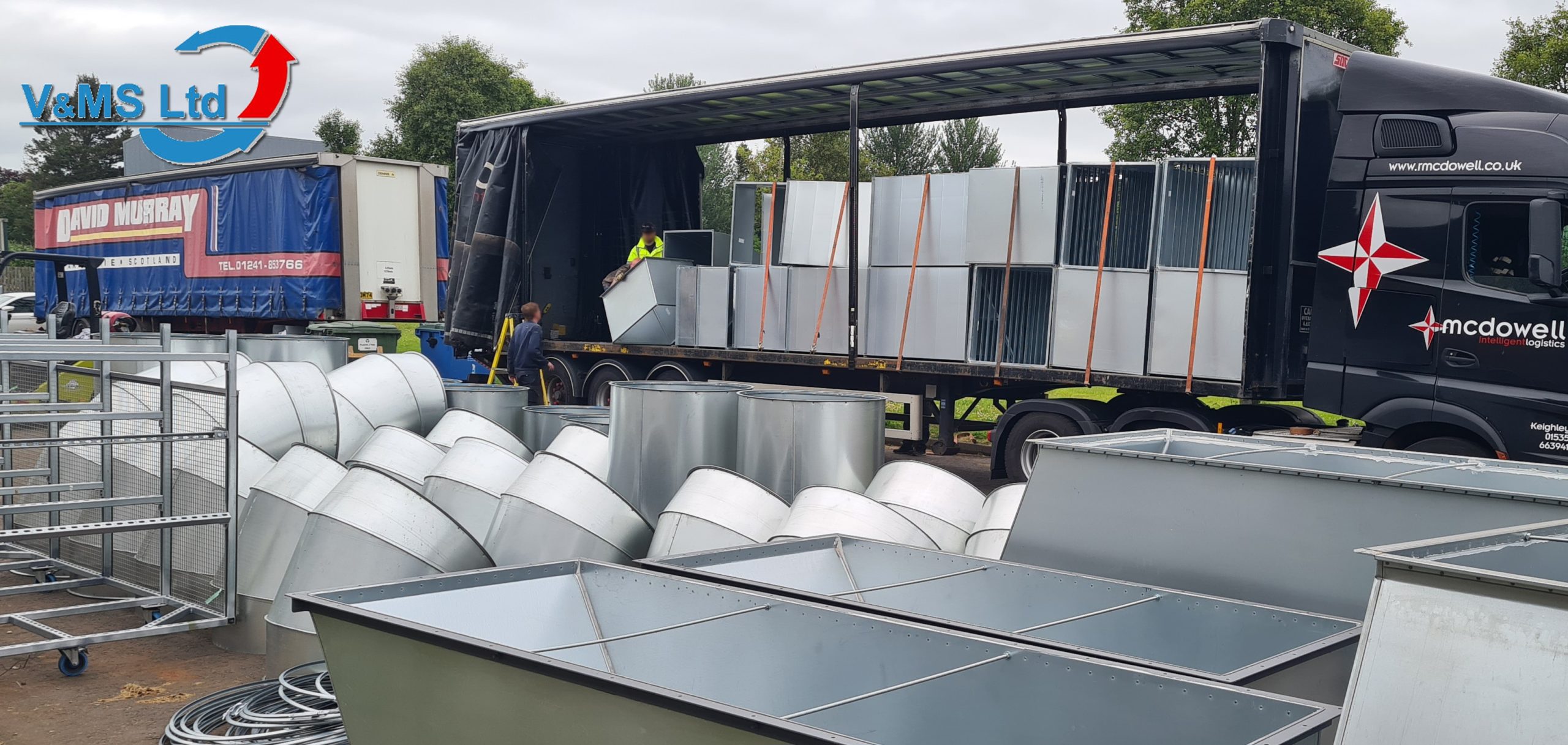

![VMS Photo of ducting being loaded]( "photo-of-duct-being-loaded")
-
![Powder Coated Covers]( "powder-coated-covers")

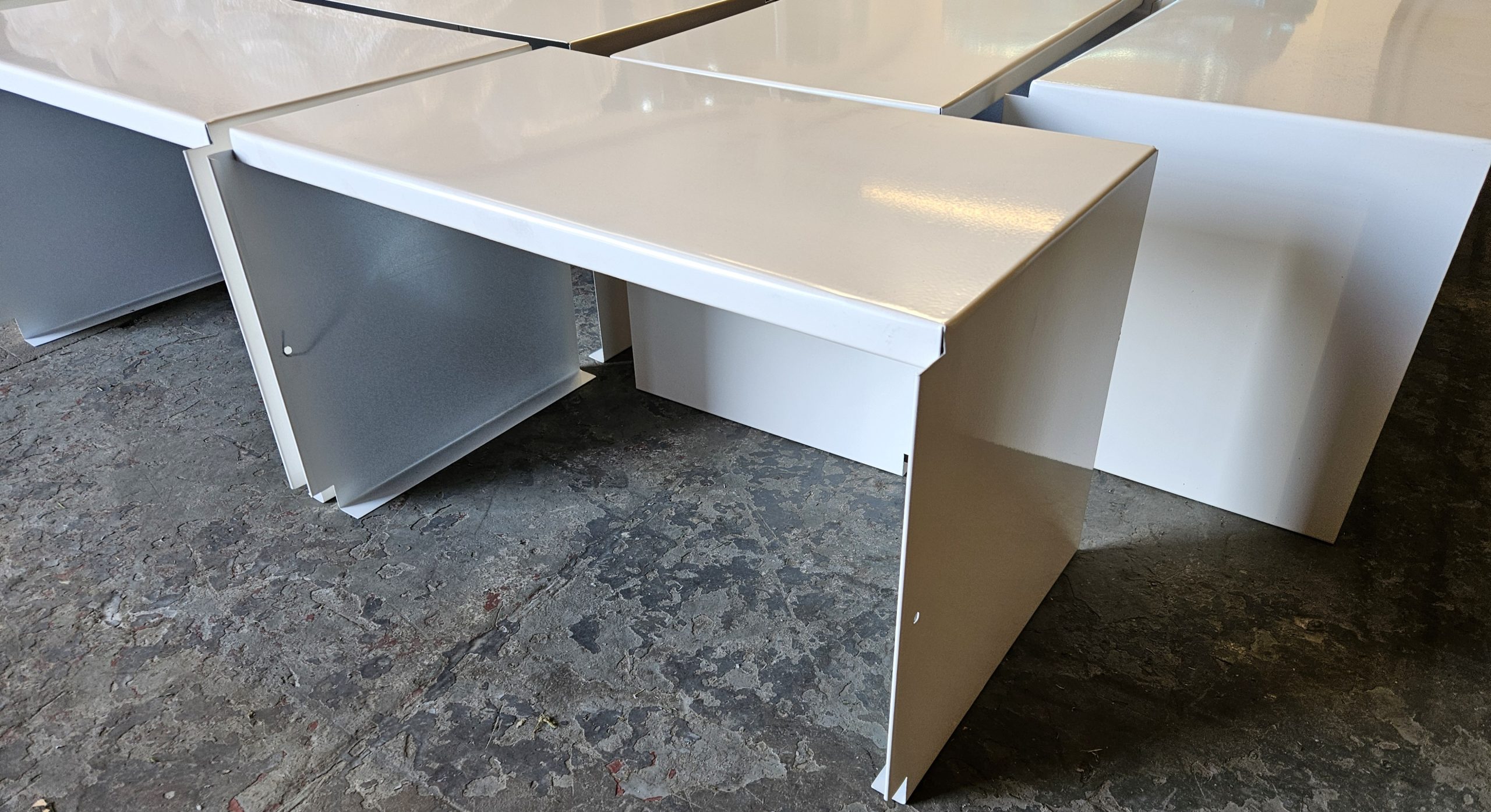

Custom made powder coated covers
-
![Lined Plenum Boxes]( "Lined Plenum Boxes")
Lined Plenum Boxes
-
![Access Doors with Handles, Tabs and Restraining Wire]( "access-doors-with-handles-tabs-and-restraining-wire")

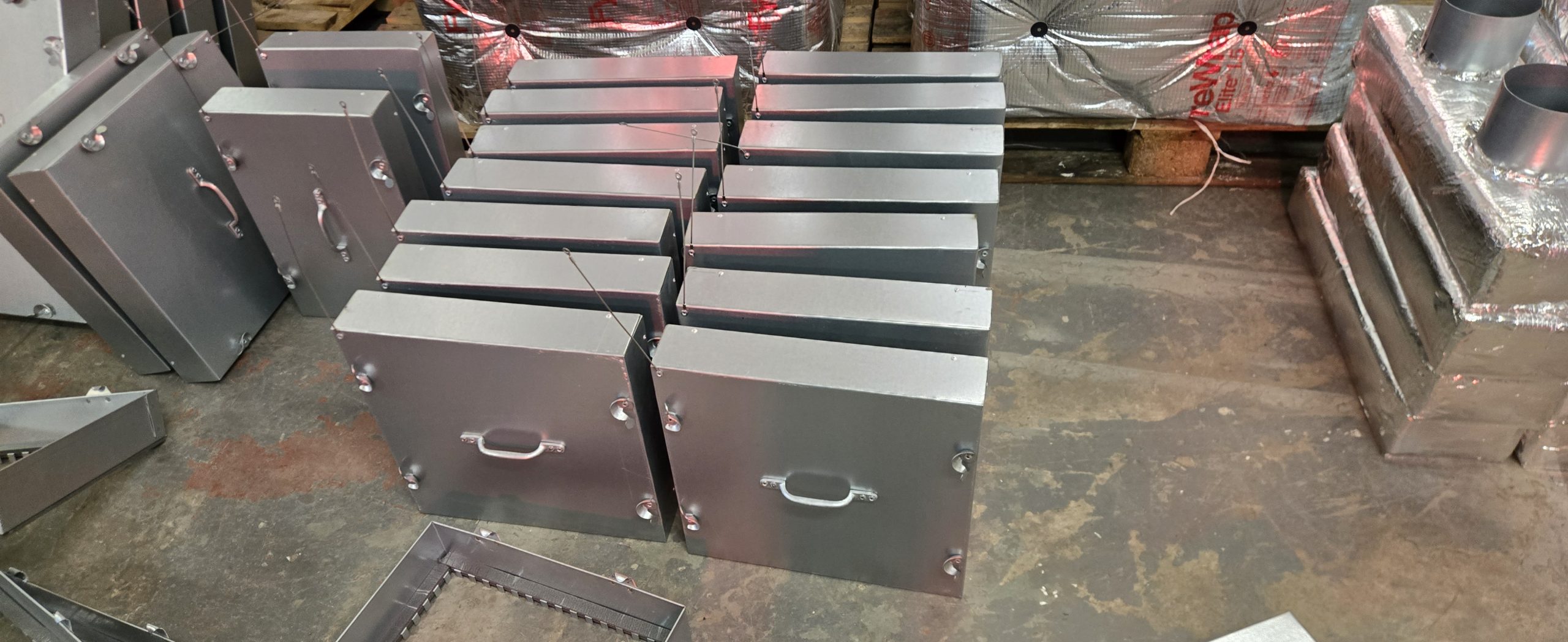

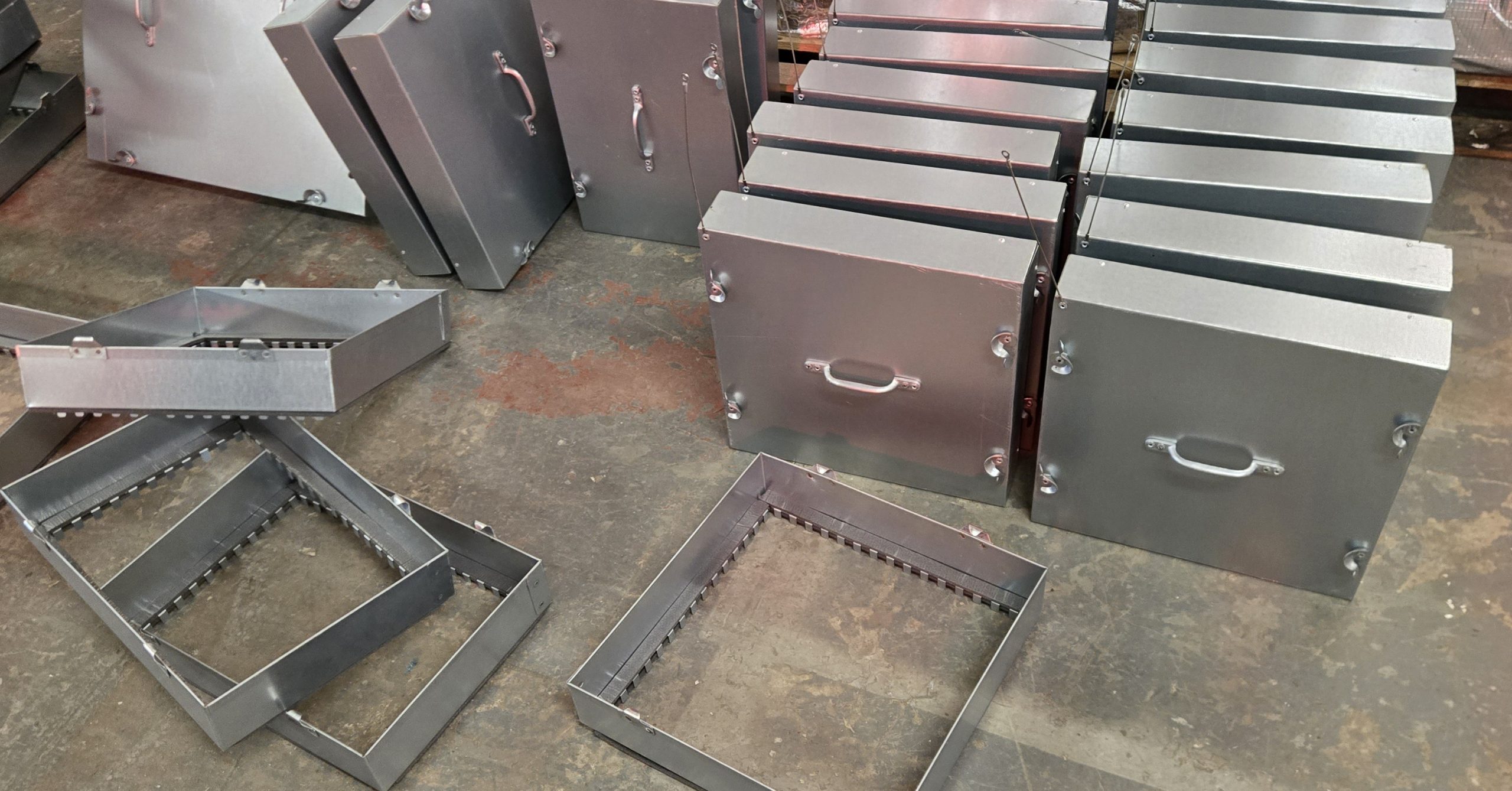

Access Doors with Handles, Tabs and Restraining Wire
-
![Access Doors with Handles, Tabs and Restraining Wire]( "Access Doors with Handles, Tabs and Restraining Wire")
Access Doors with Handles, Tabs and Restraining Wire
-
![Loading of ducting in progress]( "loading-of-ducting-in-progress")

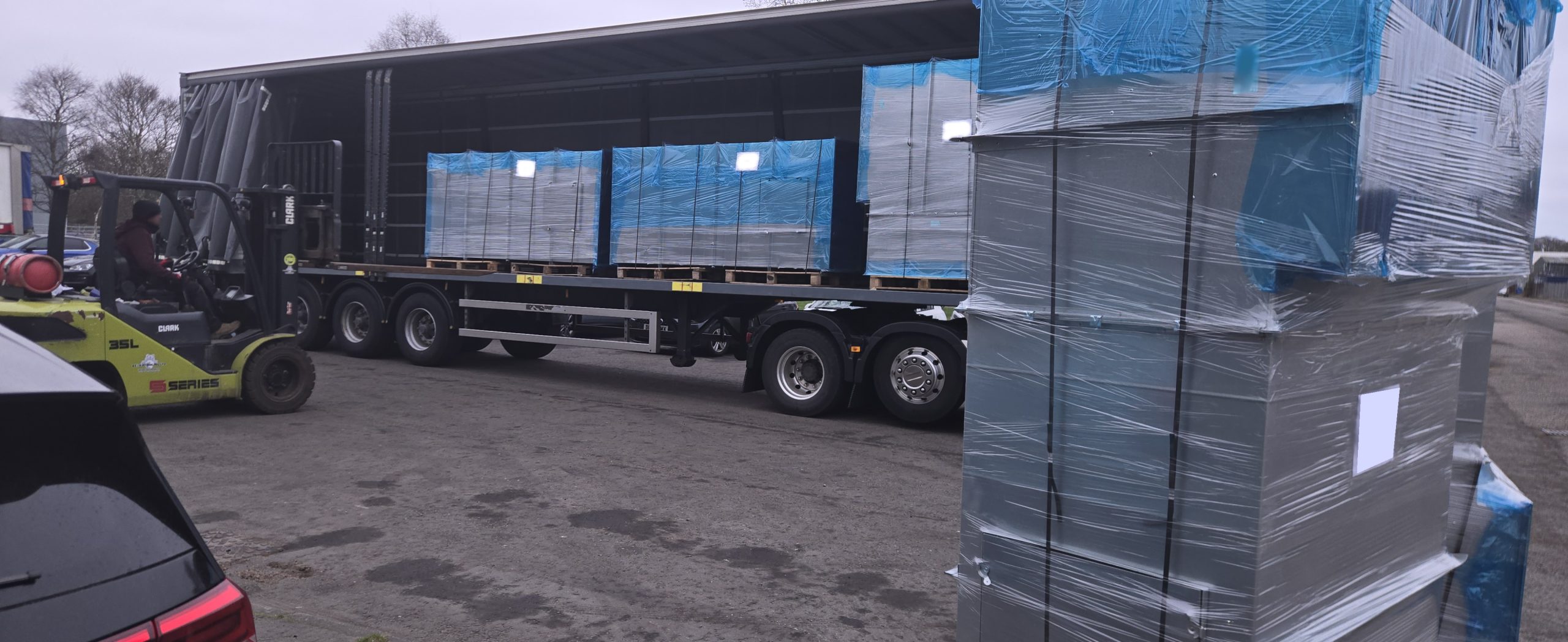

Loading of ducting in progress
-
![VMS truck being loaded]( "VMS truck being loaded")
-
![Picture of Aluminium Cowl]( "aluminium_cowls-3")
Aluminium Cowl c/w Mesh Ends
-
![Aluminium Cowl]( "aluminium_cowls-4")
Aluminium Cowl c/w Mesh Ends
-
![Aluminium Cowl]( "aluminium_cowls-1")
Aluminium Cowl c/w Mesh Ends
-
![Aluminium Cowl]( "aluminium_cowls (2)")
Aluminium Cowl c/w Mesh Ends
